Java 动态代理

发表于 更新于 分类于

为什么需要代理

不希望或是不能直接访问某一对象 A，而是通过代理对象 B 间接访问。这种方式我们就称为代理。
这里对象 A 就称为委托类，也称为被代理类，对象 B 称为代理类。

代理有哪些优点？

  1. 隐藏委托类；
  2. 解耦。在不改变委托类的情况下做一些额外处理，比如添加初始判断及其他公共操作；
  3. AOP 编程；

静态代理

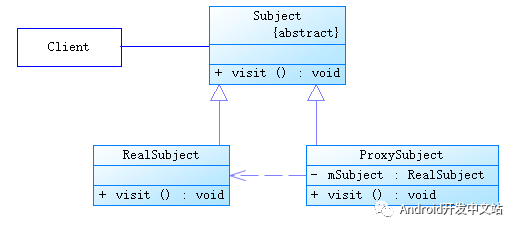

java-static-proxy-uml

代理类 ProxySubject 中的方法，都指定地调用 RealSubject 中对应的方法。

示例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
//定义委托行为
interface IHello {
    void sayHello();

    void sayHi();
}

//委托类或被代理类
class RealHello implements IHello {

    @Override public void sayHello() {
        System.out.println("Real hello!");
    }

    @Override public void sayHi() {
        System.out.println("Real hai!");
    }
}

//代理类，需要引用委托类
class ProxyHello implements IHello {
    private IHello proxy;

    private ProxyHello(IHello proxy) {
        this.proxy = proxy;
    }

    @Override public void sayHello() {
        System.out.println("Proxy, before hello!");
        proxy.sayHello();
    }

    @Override public void sayHi() {
        System.out.println("Proxy, before hi!");
        proxy.sayHi();
    }
}

private static void test() {
    //创建被代理对象或委托类实例
    IHello realHello = new RealHello();
    //创建代理类
    ProxyHello proxyHello = new ProxyHello(realHello);
    //通过代理对象调用委托对象的方法。
    proxyHello.sayHello();
    proxyHello.sayHi();
}

动态代理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// package com.example.dynamicproxy

private static void test() {
    //委托类(被代理类)
    RealHello helloImpl = new RealHello();
    IHello proxy = (IHello) Proxy.newProxyInstance(HelloImpl.class.getClassLoader(),
            HelloImpl.class.getInterfaces(), new InvocationHandler() {
                @Override
                public Object invoke(Object proxy, Method method,
                                        Object[] args) throws Throwable {
                    System.out.println("before method invoke!");
                    Object returnValue = method.invoke(helloImpl, args);
                    System.out.println("after method invoke!");
                    return returnValue;
                }
            });
    proxy.sayHi();
    proxy.sayHello();
    //com.example.dynamicproxy.$Proxy0
    System.out.println("Proxy SimpleName: " + proxy.getClass().getSimpleName());
}

动态代理工作的基本模式是对 Proxy 对象的方法调用都会转发到 InvocationHandler#invoke() 方法中，再通过反射调用委托对象的方法。

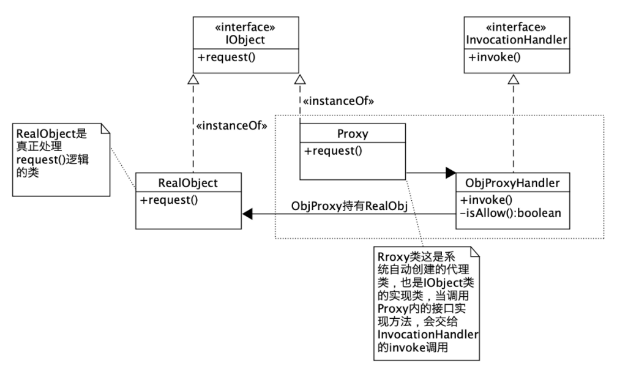

如下图所示：

java-dynamic-proxy

动态代理有两个角色：

1. InvocationHandler 接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package java.lang.reflect;

/**
 * {@code InvocationHandler} is the interface implemented by
 * the <i>invocation handler</i> of a proxy instance.
 *
 * <p>Each proxy instance has an associated invocation handler.
 * When a method is invoked on a proxy instance, the method
 * invocation is encoded and dispatched to the {@code invoke}
 * method of its invocation handler.
 */
public interface InvocationHandler {

    /**
     * Processes a method invocation on a proxy instance and returns
     * the result.  This method will be invoked on an invocation handler
     * when a method is invoked on a proxy instance that it is
     * associated with.
     */
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable;
}

2. Proxy 类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
package java.lang.reflect;

/**
 * {@code Proxy} provides static methods for creating dynamic proxy
 * classes and instances, and it is also the superclass of all
 * dynamic proxy classes created by those methods.
 */
public class Proxy implements java.io.Serializable {
    //生成的代理对象有且仅有一个包含 InvocationHandler 参数的构造函数。
    /** parameter types of a proxy class constructor */
    private static final Class<?>[] constructorParams = { InvocationHandler.class };

    //缓存生成的代理类
    private static final WeakCache<ClassLoader, Class<?>[], Class<?>>
        proxyClassCache = new WeakCache<>(new KeyFactory(), new ProxyClassFactory());

    protected InvocationHandler h;

    private Proxy() {
    }

    protected Proxy(InvocationHandler h) {
        this.h = h;
    }

    public static Object newProxyInstance(ClassLoader loader, Class<?>[] interfaces, InvocationHandler h)
        throws IllegalArgumentException {

        final Class<?>[] intfs = interfaces.clone();
        Class<?> cl = getProxyClass0(loader, intfs);
        final Constructor<?> cons = cl.getConstructor(constructorParams);
        return cons.newInstance(new Object[]{h});
    }

    public static Class<?> getProxyClass(ClassLoader loader, Class<?>... interfaces) {
        final Class<?>[] intfs = interfaces.clone();
        ...
        return getProxyClass0(loader, intfs);
    }

    /**
     * Generate a proxy class.  Must call the checkProxyAccess method
     * to perform permission checks before calling this.
     */
    private static Class<?> getProxyClass0(ClassLoader loader,
                                           Class<?>... interfaces) {
        //接口数量不能超过 65535
        if (interfaces.length > 65535) {
            throw new IllegalArgumentException("interface limit exceeded");
        }

        //从缓存中获取代理类，没有则通过 ProxyClassFactory#apply() 方法生成
        return proxyClassCache.get(loader, interfaces);
    }

    /**
     * A factory function that generates, defines and returns the proxy class given the ClassLoader and array of interfaces.
     */
    private static final class ProxyClassFactory
        implements BiFunction<ClassLoader, Class<?>[], Class<?>> {

        // prefix for all proxy class names
        private static final String proxyClassNamePrefix = "$Proxy";

        @Override
        public Class<?> apply(ClassLoader loader, Class<?>[] interfaces) {
            /*
            1. 校验 interfaceClass 是否被同一个 ClassLoader 加载、是否是接口、是否重复
            2. 校验非公有接口是否在同一个包中
            */

            // package to define proxy class in
            String proxyPkg = ReflectUtil.PROXY_PACKAGE + ".";//com.sun.proxy.

            //com.sun.proxy.$Proxy0
            String proxyName = proxyPkg + proxyClassNamePrefix + num;

            //生成代理类字节码
            byte[] proxyClassFile = ProxyGenerator.generateProxyClass(proxyName, interfaces, accessFlags);

            return defineClass0(loader, proxyName, proxyClassFile, 0, proxyClassFile.length);
        }
    }

    private static native Class<?> defineClass0(ClassLoader loader, String name, byte[] b, int off, int len);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
package sun.misc;

/**
 * ProxyGenerator contains the code to generate a dynamic proxy class
 * for the java.lang.reflect.Proxy API.
 *
 * The external interfaces to ProxyGenerator is the static
 * "generateProxyClass" method.
 */
public class ProxyGenerator {

    /**
    * Generate a proxy class given a name and a list of proxy interfaces.
    *
    * @param name        the class name of the proxy class
    * @param interfaces  proxy interfaces
    * @param accessFlags access flags of the proxy class
    */
    public static byte[] generateProxyClass(final String name, Class<?>[] interfaces, int accessFlags) {
        ProxyGenerator gen = new ProxyGenerator(name, interfaces, accessFlags);
        final byte[] classFile = gen.generateClassFile();
        return classFile;
    }

    /**
     * Generate a class file for the proxy class.  This method drives the
     * class file generation process.
     */
    private byte[] generateClassFile() {

        /* ============================================================
         * Step 1: Assemble ProxyMethod objects for all methods to
         * generate proxy dispatching code for.
         */

        /*
         * Record that proxy methods are needed for the hashCode, equals,
         * and toString methods of java.lang.Object.  This is done before
         * the methods from the proxy interfaces so that the methods from
         * java.lang.Object take precedence over duplicate methods in the
         * proxy interfaces.
         */
        addProxyMethod(hashCodeMethod, Object.class);
        addProxyMethod(equalsMethod, Object.class);
        addProxyMethod(toStringMethod, Object.class);

        /* ============================================================
         * Step 2: Assemble FieldInfo and MethodInfo structs for all of
         * fields and methods in the class we are generating.
         */

        /* ============================================================
         * Step 3: Write the final class file.
         */

        ByteArrayOutputStream bout = new ByteArrayOutputStream();
        DataOutputStream dout = new DataOutputStream(bout);

        dout.writeInt(0xCAFEBABE);

        return bout.toByteArray();
    }
}

代理对象的创建步骤：

  1. 获取委托类的所有接口列表；
  2. 在 proxyClassCache 查找是否缓存有该代理对象；
  3. 没有则调用 ProxyClassFactory#apply() 方法，生成代理对象；
  4. 根据接口所在包，确定生成的代理类的类名，系统默认类名为 com.sun.proxy.$Proxy0；
  5. 通过 ProxyGenerator.generateProxyClass() 方法动态创建代理类的字节码文件；
  6. 通过 Proxy#defineClass0() 本地方法将对应的字节码转换为对应的 Class 对象；
  7. 以 InvocationHandler 为参数，反射生成代理对象；
  8. 当调用委托类方法的时候，都会调用 InvocationHandler#invoke() 方法，进而通过反射调用委托类的相关方法。

生成的代理类反编译后如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public final class HelloImpl extends Proxy implements IHello {
    private static Method m1;
    private static Method m4;
    private static Method m3;
    private static Method m2;
    private static Method m0;

    public HelloImpl(InvocationHandler var1) throws  {
        super(var1);
    }

    public final int hashCode() throws  {}

    public final boolean equals(Object var1) throws  {}

    public final String toString() throws  {}

    public final void sayHello() throws  {
        super.h.invoke(this, m4, (Object[])null);
    }

    public final void sayHi() throws  {
        super.h.invoke(this, m3, (Object[])null);
    }

    static {
        m1 = Class.forName("java.lang.Object").getMethod("equals", Class.forName("java.lang.Object"));
        m4 = Class.forName("com.example.dynamicproxy.IHello").getMethod("sayHello");
        m3 = Class.forName("com.example.dynamicproxy.IHello").getMethod("sayHi");
        m2 = Class.forName("java.lang.Object").getMethod("toString");
        m0 = Class.forName("java.lang.Object").getMethod("hashCode");
    }
}

字节码框架

ASM

ASM 是一个 Java 字节码操控框架。它能被用来动态生成类或者增强既有类的功能。ASM 可以直接产生二进制 class 文件，也可以在类被加载入 Java 虚拟机之前动态改变类行为，分析类信息，甚至能够根据用户要求生成新类。

CGLIB

CGLIB(Code Generation Library) 是一个基于 ASM 的字节码生成库，它允许我们在运行时对字节码进行修改和动态生成。CGLIB 通过继承方式实现代理，无法处理 final 的情况。

参考

[1] sun.misc.ProxyGenerator.java
[2] ASM is an all purpose Java bytecode manipulation and analysis framework
[3] AOP 的利器：ASM 3.0 介绍 - IBM
[4] cglib - Byte Code Generation Library is high level API to generate and transform Java byte code
