Okhttp 源码分析

发表于 更新于 分类于

OkHttp 是 Square 公司开源的网络请求框架。有如下优点：

  • 支持 HTTPS；
  • 支持 HTTP2/SPDY；
  • Socket 自动选择最好路线，并支持自动重连；
  • 连接池（ConnectionPool）减少了请求延迟；
  • 透明 GZip 压缩；
  • HTTP 缓存，只支持 GET 请求；
  • 当网络出现问题时，OkHttp 会自动重试一个主机的多个 IP 地址；
  • 拦截器机制，轻松处理请求与响应。

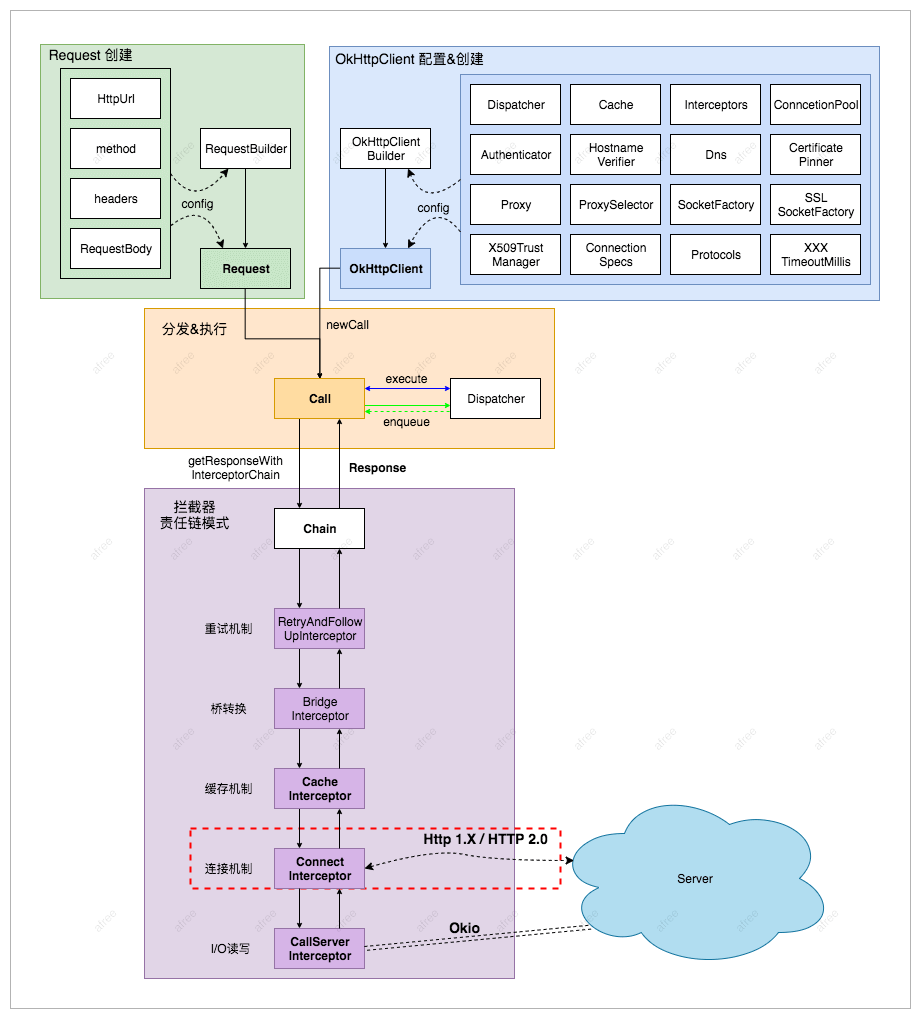

OkHttp 系统层级结构图：

okhttp

关键角色：

  • OkHttpClient：通信的客户端，用来统一管理发起请求与解析响应；
  • Request：封装网络请求的具体信息，例如：url、header 等；
  • RequestBody：请求体，用来提交流、表单等请求信息；
  • Response：请求的响应，获取响应信息，例如：响应 header 等；
  • ResponseBody：请求的响应体，只能使用一次，所以我们重复调用 responseBody.string() 会报错；
  • Call：Call 是一个接口，它是 HTTP 请求的抽象描述。具体实现类是 RealCall，它由 CallFactory 创建；
  • Interceptor：负责拦截并处理请求，它将网络请求、缓存、透明压缩等功能都统一起来，每个功能都是一个 Interceptor，所有的 Interceptor 最终连接成一个Interceptor.Chain。典型的责任链模式实现；
  • StreamAllocation：用来控制 Connections 与 Streams 的资源分配与释放；
  • RouteSelector：选择路线与自动重连；
  • Chche：根据 URL 以及请求参数来生成，只缓存 GET 请求。在 Cache#put(Response response) 对 GET 判断。通过DiskLruCache实现；
  • 默认支持 gzip 压缩。BridgeInterceptor.java；

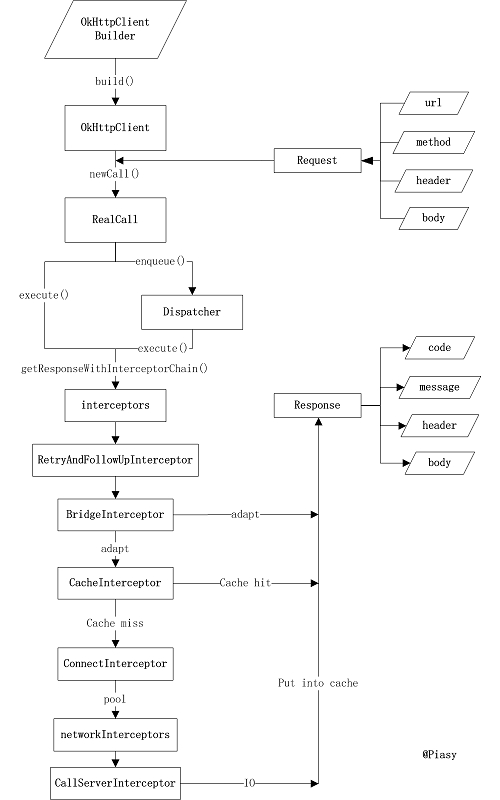

okhttp-flow

  1. OkhttpClient 对象是通过 OkHttpClient.Builder 对象构建出来的，可以设置缓存、超时时间、SSL/TLS、拦截器和连接池等参数；
  2. 通过 Request.Builder 设置请求方法、url、header、tag 和 CacheControl 等参数，构造 Request 对象；
  3. OkHttpClient 对象通过 newCall() 方法，以 Request 对象为参数，创建一个 RealCall 对象。每个 Call 只能允许执行一次；
  4. 通过 RealCall 对象的同步方法 execute() 和异步方法 enqueue() 方法交给 Dispatcher 调度执行。异步请求被包装成了 Runnable 的实现类 AsyncCall；
  5. Dispatcher 包含了线程池和三个双向队列（readyAsyncCalls, runningAsyncCalls, runningSyncCalls）。最大允许 64 个并发，每个域名允许最多5个请求；
  6. 通过拦截器机制（RealInterceptorChain）层层修改，最后通过 CallServerInterceptor 发起网络请求；
  7. 在 CallServerInterceptor 中通过 ExchangeCodec 发起 Socket 请求，使用 Okio 封装 Response，返回给客户端。

Request

Request 代表网络请求的对象，通过 Request.Builder 来构建。默认 GET 请求。

1
2
3
4
5
6
7
8
9
10
11
12
/**
 * An HTTP request. Instances of this class are immutable if their [body] is null or itself
 * immutable.
 */
class Request internal constructor(
    val url: HttpUrl, val method: String,
    val headers: Headers, val body: RequestBody?,
    internal val tags: Map<Class<*>, Any>) {

    open class Builder {
    }
}

Request 通过 Builder 模式创建实例。

RequestBody

1
2
3
4
5
6
7
8
9
10
11
12
abstract class RequestBody {
    abstract fun contentType(): MediaType?
    open fun contentLength(): Long = -1L
    abstract fun writeTo(sink: BufferedSink)
    open fun isDuplex(): Boolean = false
    open fun isOneShot(): Boolean = false

    companion object {
        fun String.toRequestBody(contentType: MediaType? = null): RequestBody {}
        fun File.asRequestBody(contentType: MediaType? = null): RequestBody {}
    }
}

RequestBody 是抽象类，具体实现有 FormBody 和 MultipartBody ，分被对应 application/x-www-form-urlencoded 和 multipart/xxx 类型。

FormBody:

表示使用表单方式提交。

1
2
3
4
5
class FormBody internal constructor(encodedNames: List<String>, encodedValues: List<String>) : RequestBody() {
    companion object {
        private val CONTENT_TYPE: MediaType = "application/x-www-form-urlencoded".toMediaType()
    }
}

示例：

1
2
3
4
FormBody.Builder(Charset.defaultCharset())
  .add("name", "mumu")
  .add("age", "18")
  .build()

MultipartBody:

表示使用多部分方式提交。

1
2
3
4
5
6
7
8
9
10
11
12
class MultipartBody internal constructor(
  private val boundaryByteString: ByteString,
  val type: MediaType, val parts: List<Part>) : RequestBody() {

    companion object {
        val MIXED = "multipart/mixed".toMediaType()
        val ALTERNATIVE = "multipart/alternative".toMediaType()
        val DIGEST = "multipart/digest".toMediaType()
        val PARALLEL = "multipart/parallel".toMediaType()
        val FORM = "multipart/form-data".toMediaType()
    }
}
1
2
3
4
5
6
MultipartBody.Builder()
  .setType(MultipartBody.FORM)
  .addFormDataPart("name", "Vance")
  .addFormDataPart("age", "18")
  .addFormDataPart("photo", "photo.png",
          File("").asRequestBody("image/png".toMediaType()))

Response

1
2
3
4
5
6
7
8
9
10
/**
 * An HTTP response. Instances of this class are not immutable: the response body is a one-shot
 * value that may be consumed only once and then closed. All other properties are immutable.
 *
 * This class implements [Closeable]. Closing it simply closes its response body. See
 * [ResponseBody] for an explanation and examples.
 */
class Response internal constructor(val request: Request, ..., val body: ResponseBody?, ...){
    open class Builder {}
}

使用 Builder 模式设置参数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
/**
A one-shot stream from the origin server to the client application with the raw bytes of the response body.
The response body can be consumed only once.
*/
abstract class ResponseBody : Closeable {
    fun string(): String = source().use { source ->
        source.readString(charset = source.readBomAsCharset(charset()))
    }
    private fun charset() = contentType()?.charset(UTF_8) ?: UTF_8
    override fun close() = source().closeQuietly()
    companion object {
        fun String.toResponseBody(contentType: MediaType? = null): ResponseBody {}
    }
}

ResponseBody 是抽象类，代表响应体，用于操作网络请求返回的内容。
两个实现类是 RealResponseBody 和 CacheResponseBody，分别代表真实响应和缓存响应。

注意事项：

  1. ResponseBody 必须关闭，否则会造成资源泄漏。
  2. ResponseBody 只能被消费一次，因为最终都要通过 Util.closeQuietly(source) 方法关闭 source。
  3. 如果 ResponseBody 中的数据很大，则不应该使用 bytes() 或 string() 方法，它们会将结果一次性读入内存，而应该使用 byteStream() 或 charStream()，以流的方式读取数据。

Call

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
/**
 * A call is a request that has been prepared for execution. A call can be canceled. As this object
 * represents a single request/response pair (stream), it cannot be executed twice.
 */
interface Call : Cloneable {
    fun request(): Request
    fun execute(): Response
    fun enqueue(responseCallback: Callback)
    fun cancel()
    fun isExecuted(): Boolean
    fun isCanceled(): Boolean
    fun timeout(): Timeout
    public override fun clone(): Call

    fun interface Factory {
        fun newCall(request: Request): Call
    }
}

Call 是接口，表示一个已经准备好可以随时执行的 HTTP 请求。每个 Call 对象只能执行一次请求，可以查询请求的执行状态，或者取消当前请求。唯一实现类是 RealCall。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
class RealCall(val client: OkHttpClient, val originalRequest: Request, ...) : Call {

    override fun execute(): Response {
        try {
            client.dispatcher.executed(this)
            return getResponseWithInterceptorChain()
        } finally {
            client.dispatcher.finished(this)
        }
    }

    override fun enqueue(responseCallback: Callback) {
        //Call 只能执行一次
        check(executed.compareAndSet(false, true)) { "Already Executed" }
        client.dispatcher.enqueue(AsyncCall(responseCallback))
    }

    //异步请求回调封装类
    internal inner class AsyncCall(private val responseCallback: Callback) : Runnable {

        /**
        * Attempt to enqueue this async call on [executorService]. This will attempt to clean up
        * if the executor has been shut down by reporting the call as failed.
        */
        fun executeOn(executorService: ExecutorService) {
            var success = false
            try {
                executorService.execute(this)
                success = true
            } catch (e: RejectedExecutionException) {
                responseCallback.onFailure(this@RealCall, ioException)
            } finally {
                if (!success) {
                    client.dispatcher.finished(this) // This call is no longer running!
                }
            }
        }

        override fun run() {
            threadName("OkHttp ${redactedUrl()}") {
                try {
                    val response = getResponseWithInterceptorChain()
                    responseCallback.onResponse(this@RealCall, response)
                } catch (e: IOException) {
                    responseCallback.onFailure(this@RealCall, e)
                } finally {
                    client.dispatcher.finished(this)
                }
            }
        }
    }
}
  1. 每个 Call 只能执行一次，可以使用 Call.clone() 方法克隆新对象执行；
  2. execute() 表示执行同步请求，添加到 Dispatcher#runningSyncCalls 队列中；
  3. enqueue() 表示执行异步请求，先封装为 AsyncCall（Runnable 的子类），再添加到 Dispatcher#readyAsyncCalls 队列中，通过线程池执行；
  4. 同步和异步请求都是通过 RealCall#getResponseWithInterceptorChain() 获取响应结果，最后调用 Dispatcher#finish() 方法结束请求；

拦截器

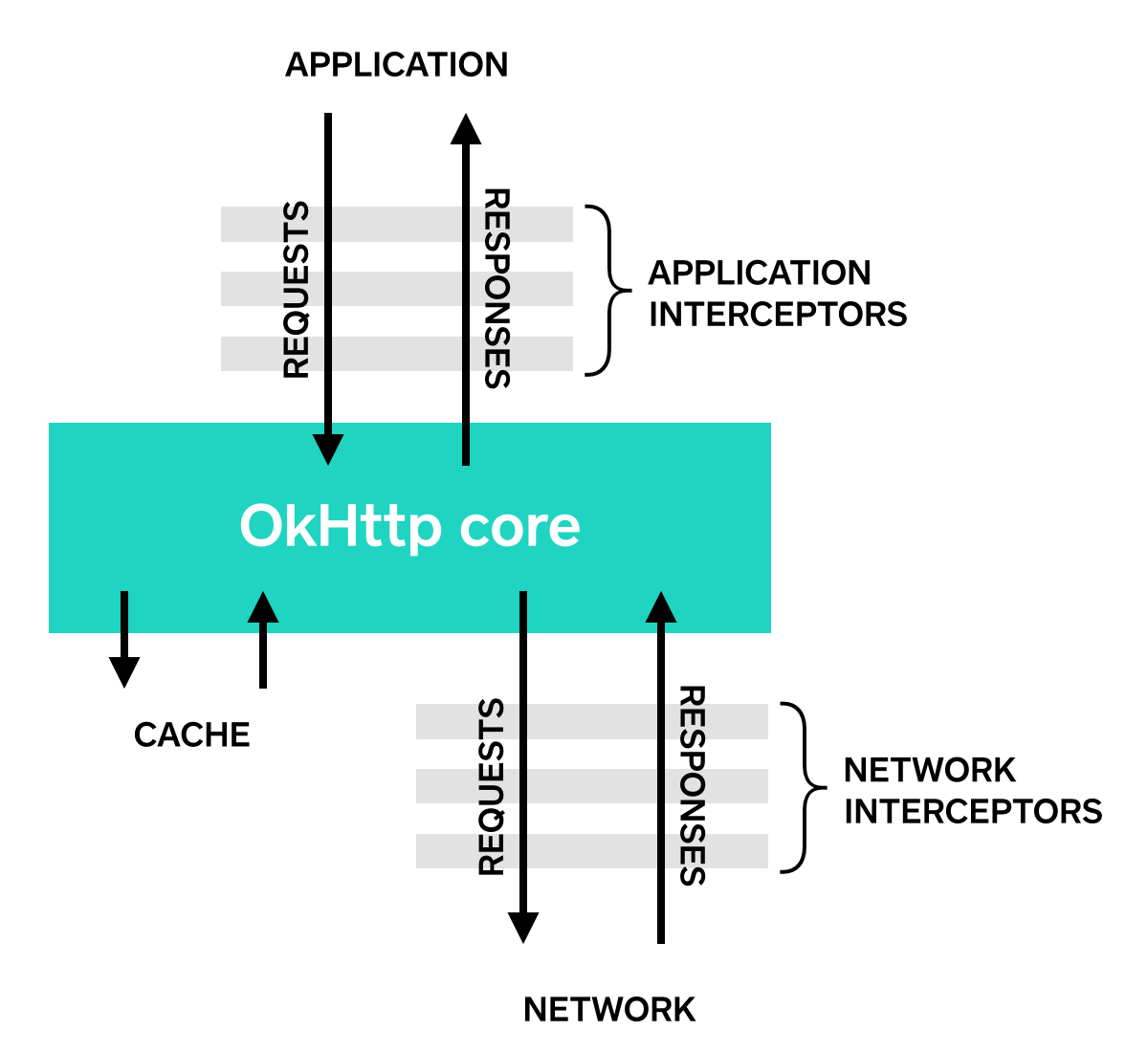

okhttp-core-interceptor

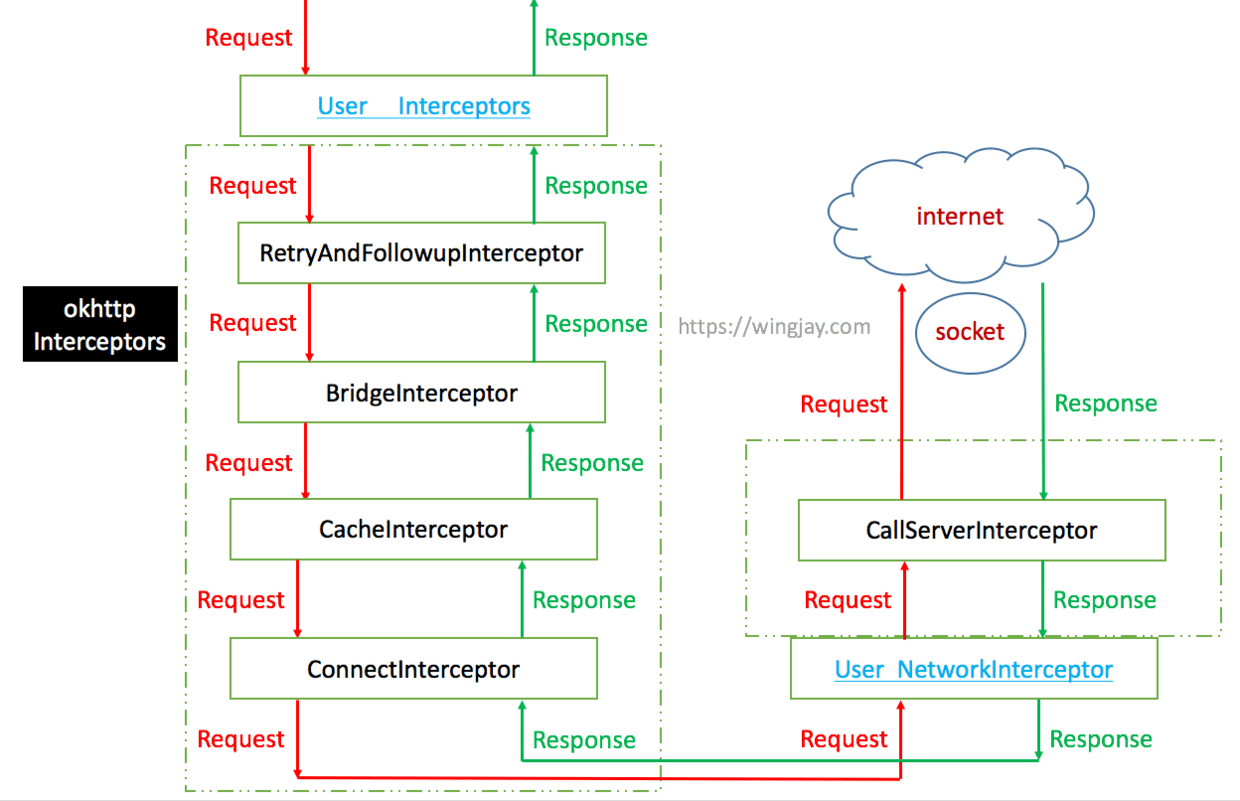

okhttp-interceptors

应用拦截器：

  1. 不需要关心像重定向和重试这样的中间响应。
  2. 总是调用一次，即使 HTTP 响应从缓存中获取数据。
  3. 监视应用原始意图。不关心 OkHttp 注入的像 If-None-Match 头。
  4. 允许短路并不调用 Chain.proceed()。
  5. 允许重试并执行多个 Chain.proceed() 调用。

网络拦截器：

  1. 可以操作像重定向和重试这样的中间响应。
  2. 对于短路网络的缓存响应不会调用。
  3. 监视即将要通过网络传输的数据。

RealInterceptorChain

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
 * Bridge between OkHttp's application and network layers. This class exposes high-level application
 * layer primitives: connections, requests, responses, and streams.
 */
class RealCall(val client: OkHttpClient, val originalRequest: Request,
    val forWebSocket: Boolean) : Call {

    internal fun getResponseWithInterceptorChain(): Response {
        // Build a full stack of interceptors.
        val interceptors = mutableListOf<Interceptor>()
        interceptors += client.interceptors
        interceptors += RetryAndFollowUpInterceptor(client)
        interceptors += BridgeInterceptor(client.cookieJar)
        interceptors += CacheInterceptor(client.cache)
        interceptors += ConnectInterceptor
        if (!forWebSocket) {
            interceptors += client.networkInterceptors
        }
        interceptors += CallServerInterceptor(forWebSocket)

        val chain = RealInterceptorChain(
            call = this,
            interceptors = interceptors,
            index = 0,
            //...
        )

        val response = chain.proceed(originalRequest)
        return response
    }
}

RealCall 发起同步和异步请求时，先收集所有拦截器，再调用 RealInterceptorChain#proceed() 方法运行拦截器，获取响应。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
/**
 * A concrete interceptor chain that carries the entire interceptor chain: all application
 * interceptors, the OkHttp core, all network interceptors, and finally the network caller.
 */
class RealInterceptorChain(
    internal val call: RealCall,
    private val interceptors: List<Interceptor>,
    private val index: Int,
    //...
) : Interceptor.Chain {
    override fun proceed(request: Request): Response {

        // 记录当前拦截器执行的次数
        calls++

        // exchange 不为空说明连接已建立
        if (exchange != null) {
            // 已建立连接后不允许修改域名和端口号
            check(exchange.finder.sameHostAndPort(request.url)) {
                "network interceptor ${interceptors[index - 1]} must retain the same host and port"
            }
            // 网络拦截器只允许运行一次
            check(calls == 1) {
                "network interceptor ${interceptors[index - 1]} must call proceed() exactly once"
            }
        }

        // 创建下一个拦截器的 RealInterceptorChain
        // Call the next interceptor in the chain.
        val next = copy(index = index + 1, request = request)
        val interceptor = interceptors[index]

        // 调用下一个拦截器的 intercept() 方法，并传入 Chain
        val response = interceptor.intercept(next) ?: throw NullPointerException(
            "interceptor $interceptor returned null")

        // 检查网络拦截器，只能运行一次
        if (exchange != null) {
            check(index + 1 >= interceptors.size || next.calls == 1) {
                "network interceptor $interceptor must call proceed() exactly once"
            }
        }

        // 响应体不能为空
        check(response.body != null) { "interceptor $interceptor returned a response with no body" }

        return response
    }
}
  1. 创建新的 RealInterceptorChain 实例，index + 1；
  2. 通过 index 获取下一个拦截器并执行 intercept(chain) 方法；
  3. 在 intercept(chain) 方法中执行 chain.proceed() 方法，回到了第一步，达到了按顺序调用拦截器的目的；
  4. 应用拦截器可以执行多次，应用拦截器只能执行一次；

RetryAndFollowUpInterceptor

负责处理失败重连和重定向，最多重定向 20 次。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/**
 * This interceptor recovers from failures and follows redirects as necessary. It may throw an
 * [IOException] if the call was canceled.
 */
class RetryAndFollowUpInterceptor(private val client: OkHttpClient) : Interceptor {
    override fun intercept(chain: Interceptor.Chain): Response {
        var followUpCount = 0
        while (true) {
            var response: Response
            try {
                if (call.isCanceled()) {
                    throw IOException("Canceled")
                }
                try {
                    response = realChain.proceed(request)
                } catch (e: RouteException) {
                    // The attempt to connect via a route failed. The request will not have been sent.
                    //如果不能恢复抛出异常，否则把异常信息保存到集合中
                    continue
                } catch (e: IOException) {
                    // An attempt to communicate with a server failed. The request may have been sent.
                    //如果不能恢复抛出异常，否则把异常信息保存到集合中
                    continue
                }

                // 根据响应码创建新的 Request 或 null
                val followUp = followUpRequest(response, exchange)
                if (++followUpCount > MAX_FOLLOW_UPS) {
                    throw ProtocolException("Too many follow-up requests: $followUpCount")
                }
            }
        }
    }

    companion object {
        /**
        * How many redirects and auth challenges should we attempt? Chrome follows 21 redirects; Firefox,
        * curl, and wget follow 20; Safari follows 16; and HTTP/1.0 recommends 5.
        */
        private const val MAX_FOLLOW_UPS = 20
    }
}

BridgeInterceptor

应用层和网络层之间的桥接拦截器，负责把应用层发出的请求转换为网络层认识的请求（比如添加 Content-Type、Cookie 等请求头，处理 gzip 压缩）和把网络层执行后的响应变为应用层友好的响应。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/**
 * Bridges from application code to network code. First it builds a network request from a user
 * request. Then it proceeds to call the network. Finally it builds a user response from the network
 * response.
 */
class BridgeInterceptor(private val cookieJar: CookieJar) : Interceptor {
    override fun intercept(chain: Interceptor.Chain): Response {
        val userRequest = chain.request()
        val requestBuilder = userRequest.newBuilder()

        //处理用户请求的 header

        //自动支持 gzip 压缩
        var transparentGzip = false
        if (userRequest.header("Accept-Encoding") == null && userRequest.header("Range") == null) {
            transparentGzip = true
            requestBuilder.header("Accept-Encoding", "gzip")
        }

        val networkResponse = chain.proceed(requestBuilder.build())
        val responseBuilder = networkResponse.newBuilder().request(userRequest)

        //处理 gzip 压缩
        if (transparentGzip &&
            "gzip".equals(networkResponse.header("Content-Encoding"), ignoreCase = true) &&
            networkResponse.promisesBody()) {
            val responseBody = networkResponse.body
            if (responseBody != null) {
                val gzipSource = GzipSource(responseBody.source())
                val strippedHeaders = networkResponse.headers.newBuilder()
                    .removeAll("Content-Encoding")
                    .removeAll("Content-Length")
                    .build()
                responseBuilder.headers(strippedHeaders)
                val contentType = networkResponse.header("Content-Type")
                responseBuilder.body(RealResponseBody(contentType, -1L, gzipSource.buffer()))
            }
        }

        return responseBuilder.build()
    }
}

CacheInterceptor

负责读取和更新缓存。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
/** Serves requests from the cache and writes responses to the cache. */
class CacheInterceptor(internal val cache: Cache?) : Interceptor {
    override fun intercept(chain: Interceptor.Chain): Response {
        val strategy = CacheStrategy.Factory(now, chain.request(), cacheCandidate).compute()
        val networkRequest = strategy.networkRequest
        val cacheResponse = strategy.cacheResponse

        // If we're forbidden from using the network and the cache is insufficient, fail.
        if (networkRequest == null && cacheResponse == null) {
            //返回 504 错误
        }

        if (networkRequest == null) {
            //使用缓存且缓存可用，返回缓存数据
            return cacheResponse!!.newBuilder()
                .cacheResponse(stripBody(cacheResponse))
                .build().also {
                    listener.cacheHit(call, it)
                }
        }

        var networkResponse = chain.proceed(networkRequest)

        if (cacheResponse != null) {
            if (networkResponse?.code == HTTP_NOT_MODIFIED) {
                //缓存存在且 code = 304，表示服务端资源没有修改，更新缓存并返回
                cache.update(cacheResponse, response)
                return response.also {
                    listener.cacheHit(call, it)
                }
            } else {
                // 如果是非304，说明服务端资源有更新，就关闭缓存响应体
                cacheResponse.body?.closeQuietly()
            }
        }

        //创建 response 对象
        val response = networkResponse!!.newBuilder()
        .cacheResponse(stripBody(cacheResponse))
        .networkResponse(stripBody(networkResponse))
        .build()

        if (cache != null) {
            if (response.promisesBody() && CacheStrategy.isCacheable(response, networkRequest)) {
                // 只缓存 GET 请求
                val cacheRequest = cache.put(response)
                //保存缓存
                return cacheWritingResponse(cacheRequest, response)
            }

            // 不是 GET 请求，移除缓存
            if (HttpMethod.invalidatesCache(networkRequest.method)) {
                cache.remove(networkRequest)
            }
        }
        return response
    }
}

当被 CacheStrategy 加工输出后，输出 networkRequest 与 cacheResponse，根据是否为空执行不同的请求。

networkRequest cacheResponse result
null null only-if-cached （表明不进行网络请求且缓存不存在或过期，返回 504 错误）
null non-null 不进行网络请求，且缓存可以使用，直接返回缓存
non-null non-null 资源未修改，返回缓存
non-null null 请求网络，缓存 GET 请求，保存到本地
  1. 只缓存 GET 请求的响应；
  2. 使用 DiskLruCache 实现内存缓存；
  3. 使用 Okio 来实现缓存文件的读写；
  4. 基于 Http 的缓存头，实现缓存机制；

ConnectInterceptor

负责与服务器建立链接，初始化 Exchange，建立连接。

1
2
3
4
5
6
7
8
9
10
/**
 * Opens a connection to the target server and proceeds to the next interceptor. The network might
 * be used for the returned response, or to validate a cached response with a conditional GET.
 */
object ConnectInterceptor : Interceptor {
    val realChain = chain as RealInterceptorChain
    val exchange = realChain.call.initExchange(chain)
    val connectedChain = realChain.copy(exchange = exchange)
    return connectedChain.proceed(realChain.request)
}

CallServerInterceptor

负责向服务器发送请求，获取数据。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/** This is the last interceptor in the chain. It makes a network call to the server. */
class CallServerInterceptor(private val forWebSocket: Boolean) : Interceptor {
    override fun intercept(chain: Interceptor.Chain): Response {

        var response = responseBuilder
                .request(request)
                .handshake(exchange.connection.handshake())
                .sentRequestAtMillis(sentRequestMillis)
                .receivedResponseAtMillis(System.currentTimeMillis())
                .build()
        response.newBuilder()
                .body(exchange.openResponseBody(response))
                .build()
    }

}

Dispatcher 调度器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
class Dispatcher constructor() {
    var maxRequests = 64
    var maxRequestsPerHost = 5
    val executorService: ExecutorService
        get() {
            if (executorServiceOrNull == null) {
                    executorServiceOrNull = ThreadPoolExecutor(0, Int.MAX_VALUE, 60, TimeUnit.SECONDS,
                    SynchronousQueue(), threadFactory("$okHttpName Dispatcher", false))
            }
            return executorServiceOrNull!!
        }

    /** Ready async calls in the order they'll be run. */
    private val readyAsyncCalls = ArrayDeque<AsyncCall>()

    /** Running asynchronous calls. Includes canceled calls that haven't finished yet. */
    private val runningAsyncCalls = ArrayDeque<AsyncCall>()

    /** Running synchronous calls. Includes canceled calls that haven't finished yet. */
    private val runningSyncCalls = ArrayDeque<RealCall>()

    internal fun enqueue(call: AsyncCall) {
        synchronized(this) {
            readyAsyncCalls.add(call)

            if (!call.call.forWebSocket) {
                val existingCall = findExistingCallWithHost(call.host)
                if (existingCall != null) call.reuseCallsPerHostFrom(existingCall)
            }
        }
        promoteAndExecute()
    }

    /**
    * Promotes eligible calls from [readyAsyncCalls] to [runningAsyncCalls] and runs them on the
    * executor service. Must not be called with synchronization because executing calls can call
    * into user code.
    *
    * @return true if the dispatcher is currently running calls.
    */
    private fun promoteAndExecute(): Boolean {
        this.assertThreadDoesntHoldLock()

        val executableCalls = mutableListOf<AsyncCall>()
        val isRunning: Boolean
        synchronized(this) {
            val i = readyAsyncCalls.iterator()
            while (i.hasNext()) {
                val asyncCall = i.next()

                // 判断是否达到最大并发数
                if (runningAsyncCalls.size >= this.maxRequests) break // Max capacity.
                // 判断是否达到每个域名最大并发数
                if (asyncCall.callsPerHost.get() >= this.maxRequestsPerHost) continue // Host max capacity.

                // 从等待队列中移除
                i.remove()
                // Host并发数加 1
                asyncCall.callsPerHost.incrementAndGet()
                // 加入可执行请求的集合
                executableCalls.add(asyncCall)
                // 加入正在执行的异步请求队列
                runningAsyncCalls.add(asyncCall)
            }
            isRunning = runningCallsCount() > 0
        }

        for (i in 0 until executableCalls.size) {
            val asyncCall = executableCalls[i]
            asyncCall.executeOn(executorService)
        }

        return isRunning
    }

    /** Used by [Call.execute] to signal it is in-flight. */
    @Synchronized internal fun executed(call: RealCall) {
        runningSyncCalls.add(call)
    }

    internal fun finished(call: AsyncCall) {
        call.callsPerHost.decrementAndGet()
        finished(runningAsyncCalls, call)
    }

    internal fun finished(call: RealCall) {
        finished(runningSyncCalls, call)
    }

    private fun <T> finished(calls: Deque<T>, call: T) {
        val idleCallback: Runnable?
        synchronized(this) {
            // 移除已完成的任务
            if (!calls.remove(call)) throw AssertionError("Call wasn't in-flight!")
            idleCallback = this.idleCallback
        }

        // 将等待队列中的请求移入异步队列，并交由线程池执行
        val isRunning = promoteAndExecute()

        // 如果没有请求需要执行，回调闲置callback
        if (!isRunning && idleCallback != null) {
            idleCallback.run()
        }
    }
}
  1. 最多同时执行 64 个请求，每个域名允许最多 5 个请求；
  2. 包含 3 个双向队列，readyAsyncCalls、runningAsyncCalls 和 runningSyncCalls 分别用来保存可运行的异步任务、运行中的异步任务和运行中的同步任务；
  3. Dispatcher 使用的线程池的核心线程数为 0，非核心线程无限制，空闲线程最长存活 60s，使用的是 SynchronousQueue 同步队列，适合快速响应任务的场景，提高并发量；
  4. promoteAndExecute() 在 Call 初次执行和执行完成后调用。遍历待运行队列，添加到运行队列中，并从待运行队列中移除 Call。然后遍历运行队列，提交到线程池。

建立网络链接

Route/RouteSelector

RealConnection

同一个 Connection 可能会承载多个 HTTP 的请求与响应。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
private fun connectSocket(...) {
    val proxy = route.proxy
    val address = route.address

    val rawSocket = when (proxy.type()) {
        Proxy.Type.DIRECT, Proxy.Type.HTTP -> address.socketFactory.createSocket()!!
        else -> Socket(proxy)
    }
    this.rawSocket = rawSocket

    rawSocket.soTimeout = readTimeout
    Platform.get().connectSocket(rawSocket, route.socketAddress, connectTimeout)
    //okio中的接口，用来输入，类似于  InputStream
    source = rawSocket.source().buffer()
    //okio中的接口 ，用来输出，类似于OutputStream
    sink = rawSocket.sink().buffer()
}

ConnectionPool

连接池，管理和维护 HTTP 连接。类似线程池，减少创建和销毁连接的性能开销。

1
2
3
4
5
6
7
8
9
10
11
12
/**
 * Manages reuse of HTTP and HTTP/2 connections for reduced network latency. HTTP requests that
 * share the same [Address] may share a [Connection]. This class implements the policy
 * of which connections to keep open for future use.
 *
 * @constructor Create a new connection pool with tuning parameters appropriate for a single-user
 * application. The tuning parameters in this pool are subject to change in future OkHttp releases.
 * Currently this pool holds up to 5 idle connections which will be evicted after 5 minutes of
 * inactivity.
 */
class ConnectionPool internal constructor(
    internal val delegate: RealConnectionPool) {}

ConnectionPool 使用代理模式委托给 RealConnectionPool 实现。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
class RealConnectionPool(taskRunner: TaskRunner,
    private val maxIdleConnections: Int, keepAliveDuration: Long, timeUnit: TimeUnit) {

    private val cleanupQueue: TaskQueue = taskRunner.newQueue()
    private val connections = ConcurrentLinkedQueue<RealConnection>()

    // 从池中获取连接
    fun callAcquirePooledConnection(address: Address, call: RealCall, routes: List<Route>?,
        requireMultiplexed: Boolean): Boolean {
        for (connection in connections) {
            synchronized(connection) {
                if (requireMultiplexed && !connection.isMultiplexed) return@synchronized
                if (!connection.isEligible(address, routes)) return@synchronized
                call.acquireConnectionNoEvents(connection)
                return true
            }
        }
        return false
    }

    fun put(connection: RealConnection) {
        connections.add(connection)
        cleanupQueue.schedule(cleanupTask)
    }
}
  • 连接池是为了解决频繁的进行建立和断开连接造成的性能差的问题；
  • 连接池实现的类是 RealConnectionPool，它负责存储与清除的工作，通过 ConcurrentLinkedQueue 队列存储；
  • 通过 ExchangeFinder#findConnection() 方法根据一定的策略获取 RealConnection。如果不能从当前 Call、ConnectionPool 复用连接，则新建 RealConnection，并存储到连接池；
  • 如果空闲时间最长的连接超过了 5 分钟，或者空闲的连接数超过了 5 个，会把存活时间最长的连接从连接池中删除；

ExchangeCodec

负责真正的 IO 操作—写请求、读响应。实现类有 Http1ExchangeCodec 和 Http2ExchangeCodec，分别对应 HTTP/1.1 和 HTTP/2 版本的实现。

1
2
3
4
5
/** Encodes HTTP requests and decodes HTTP responses. */
interface ExchangeCodec {
    fun createRequestBody(request: Request, contentLength: Long): Sink
    fun openResponseBodySource(response: Response): Source
}

Exchange

负责 IO 操作， 是 ExchangeCodec 的包装。一个请求对应一个 Exchange 实例。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
/**
 * Transmits a single HTTP request and a response pair. This layers connection management and events
 * on [ExchangeCodec], which handles the actual I/O.
 */
class Exchange(
    internal val call: RealCall,
    internal val eventListener: EventListener,
    internal val finder: ExchangeFinder,
    private val codec: ExchangeCodec
) {}

/** Encodes HTTP requests and decodes HTTP responses. */
interface ExchangeCodec {}

/*
* 1. Send request headers.
* 2. Open a sink to write the request body. Either known or chunked.
* 3. Write to and then close that sink.
* 4. Read response headers.
* 5. Open a source to read the response body. Either fixed-length, chunked or unknown.
* 6. Read from and close that source.
*/
class Http1ExchangeCodec(...) : ExchangeCodec {}

/** Encode requests and responses using HTTP/2 frames. */
class Http2ExchangeCodec(...) : ExchangeCodec {}

FAQ

  • java.lang.ExceptionInInitializerError

    OkHttp 3.13+ Requires Android 5+ and Java 8+
    okhttp issues
    Version 3.13.0 Change Log

  • addInterceptor 与 addNetworkInterceptor 有什么区别？

  • 网络缓存如何实现的？

  • 网络连接怎么实现复用？

  • 如何做网络监控？

  • 如何实现下载进度？

参考

[1] 拆轮子系列：拆 OkHttp
[2] 网络请求框架 OkHttp3 全解系列 -（四）拦截器详解 2
