Glide 图片框架源码分析

发表于 更新于 分类于

Glide 是 Bump Technologies 公司开源的图片加载框架，适用于 Android 平台，是谷歌推荐的图片库。
它不仅能实现平滑的图片列表滚动效果，还支持远程图片的获取、大小调整和展示，并且可以加载 Gif 动态图，功能强大。

源码基于 com.github.bumptech.glide:glide:4.12.0

简介

  1. Glide 对象是一个单例，使用 GlideBuilder 设置 BitmapPool、内存和磁盘缓存、线程池和 engine 等参数；
  2. GlideModule 全局配置。只能在主线程使用;
  3. EngineJob 提供线程切换。Transformations 剪裁与变换。TransitionOptions;
  4. 支持加载 gif 图片；
  5. 根据 ImageView 尺寸缓存图片；

优点：

  1. Google 推荐；
  2. 专注平滑的滚动；
  3. 简单易用的 API；
  4. 高性能、可扩展。

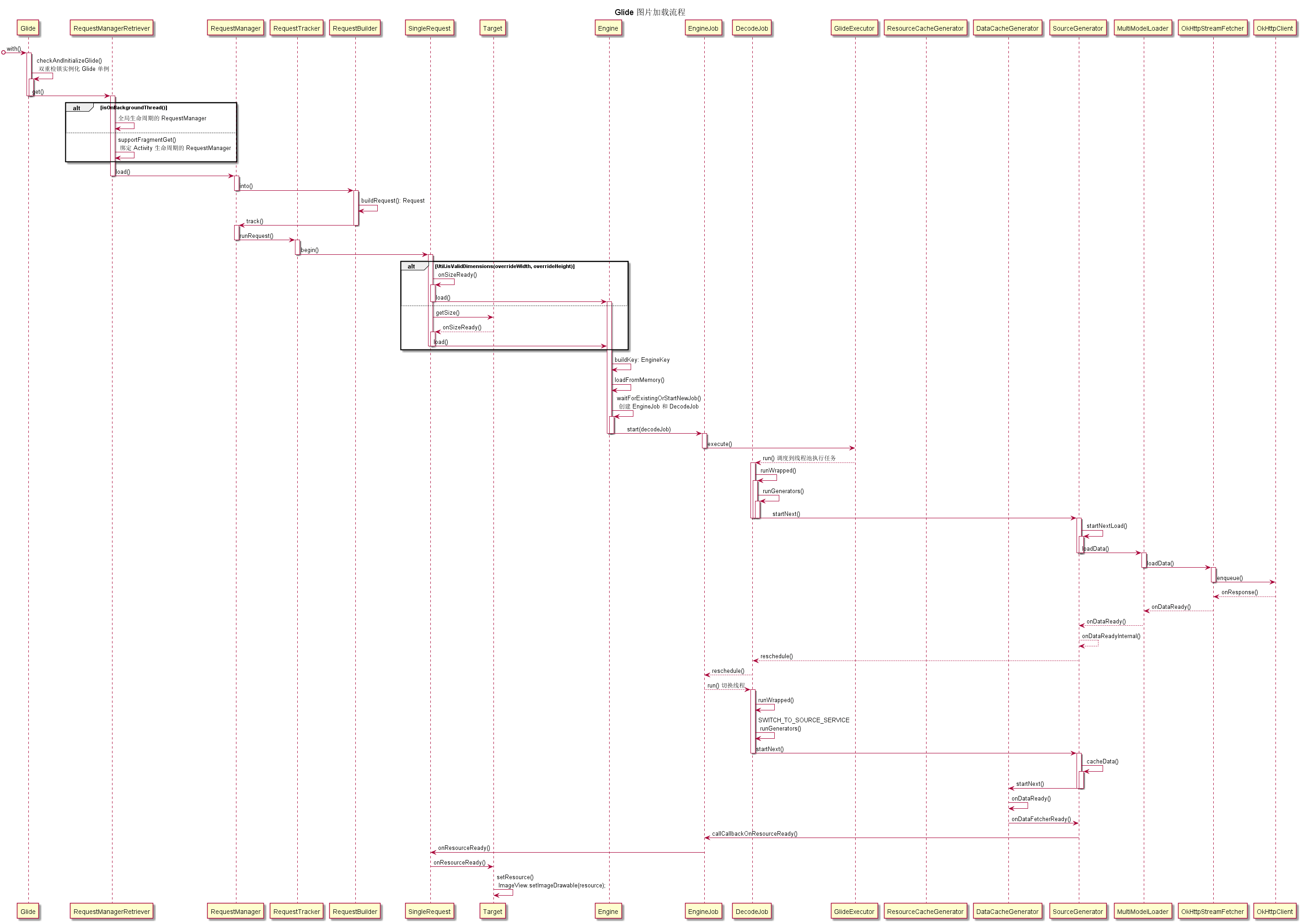

图片加载流程

Glide

基本使用：

1
Glide.with(context).load(url).into(imageView);

Glide 初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
/**
 * A singleton to present a simple static interface for building requests with RequestBuilder
 * and maintaining an Engine, BitmapPool, DiskCache and MemoryCache.
 */
public class Glide implements ComponentCallbacks2 {

    private static volatile Glide glide;

    public static Glide get(Context context) {
        if (glide == null) {
            GeneratedAppGlideModule annotationGeneratedModule =
                getAnnotationGeneratedGlideModules(context.getApplicationContext());
            synchronized (Glide.class) {
                if (glide == null) {
                    checkAndInitializeGlide(context, annotationGeneratedModule);
                }
            }
        }
        return glide;
    }

    // 文件路径 build/generated/source/kapt/debug/com/bumptech/glide/GeneratedAppGlideModuleImpl.java
    private static GeneratedAppGlideModule getAnnotationGeneratedGlideModules(Context context) {
        // 注解处理器生成的类
        Class<GeneratedAppGlideModule> clazz =
            (Class<GeneratedAppGlideModule>) Class.forName("com.bumptech.glide.GeneratedAppGlideModuleImpl");
        GeneratedAppGlideModule result =
            clazz.getDeclaredConstructor(Context.class).newInstance(context.getApplicationContext());
        return result;
    }

    private static void checkAndInitializeGlide(Context context, GeneratedAppGlideModule generatedAppGlideModule) {
        // In the thread running initGlide(), one or more classes may call Glide.get(context).
        // Without this check, those calls could trigger infinite recursion.
        if (isInitializing) {
            throw new IllegalStateException(
                "You cannot call Glide.get() in registerComponents(),"
                + " use the provided Glide instance instead");
        }
        isInitializing = true;
        initializeGlide(context, generatedAppGlideModule);
        isInitializing = false;
    }

    private static void initializeGlide(Context context, GeneratedAppGlideModule generatedAppGlideModule) {
        initializeGlide(context, new GlideBuilder(), generatedAppGlideModule);
    }

    private static void initializeGlide(Context context, GlideBuilder builder, GeneratedAppGlideModule annotationGeneratedModule) {
        Context applicationContext = context.getApplicationContext();
        // 1. 解析 AndroidManifest.xml 中配置的 GlideModule

        // 2. 设置请求工厂类
        RequestManagerRetriever.RequestManagerFactory factory =
            annotationGeneratedModule != null
            ? annotationGeneratedModule.getRequestManagerFactory()
            : null;
        builder.setRequestManagerFactory(factory);

        // 3. 设置图片参数
        for (com.bumptech.glide.module.GlideModule module : manifestModules) {
            module.applyOptions(applicationContext, builder);
        }
        if (annotationGeneratedModule != null) {
            annotationGeneratedModule.applyOptions(applicationContext, builder);
        }

        // 4. 注册组件
        Glide glide = builder.build(applicationContext);
        for (com.bumptech.glide.module.GlideModule module : manifestModules) {
            module.registerComponents(applicationContext, glide, glide.registry);
        }
        if (annotationGeneratedModule != null) {
            annotationGeneratedModule.registerComponents(applicationContext, glide, glide.registry);
        }

        // 5. 设置清除内存回调。onTrimMemory()
        applicationContext.registerComponentCallbacks(glide);
        Glide.glide = glide;
    }
}

  1. 通过双重检锁的方式实现单例；

  2. 通过 AndroidManifest.xml 的配置和注解生成的类，设置参数信息；

    1
    2
    3
    4
    5
    6
    7
    8
    9
    <manifest ...>
        <!-- ... permissions -->
        <application ...>
            <meta-data
                android:name="com.mypackage.MyGlideModule"
                android:value="GlideModule" />
            <!-- ... activities and other components -->
        </application>
    </manifest>

  3. 通过 GlideBuilder 构建 Glide 对象。

绑定生命周期

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
/**
 * A collection of static methods for creating new RequestManagers or
 * retrieving existing ones from activities and fragment.
 */
public class RequestManagerRetriever {
    public RequestManager get(Context context) {
        if (context == null) {
            throw new IllegalArgumentException("You cannot start a load on a null Context");
        } else if (Util.isOnMainThread() && !(context instanceof Application)) {
            if (context instanceof FragmentActivity) {
                return get((FragmentActivity) context);
            } else if (context instanceof Activity) {
                return get((Activity) context);
            } else if (context instanceof ContextWrapper
                && ((ContextWrapper) context).getBaseContext().getApplicationContext() != null) {
                return get(((ContextWrapper) context).getBaseContext());
            }
        }
        return getApplicationManager(context);
    }

    public RequestManager get(FragmentActivity activity) {
        if (Util.isOnBackgroundThread()) {
            return get(activity.getApplicationContext());
        } else {
            FragmentManager fm = activity.getSupportFragmentManager();
            return supportFragmentGet(activity, fm, null, isActivityVisible(activity));
        }
    }

    private RequestManager getApplicationManager(Context context) {
        // Either an application context or we're on a background thread.
        if (applicationManager == null) {
            synchronized (this) {
                if (applicationManager == null) {
                    Glide glide = Glide.get(context.getApplicationContext());
                    applicationManager = factory.build(glide, new ApplicationLifecycle(),
                            new EmptyRequestManagerTreeNode(), context.getApplicationContext());
                }
            }
        }

        return applicationManager;
    }

    private RequestManager supportFragmentGet(Context context, FragmentManager fm,
        Fragment parentHint, boolean isParentVisible) {
        SupportRequestManagerFragment current = getSupportRequestManagerFragment(fm, parentHint);
        RequestManager requestManager = current.getRequestManager();
        if (requestManager == null) {
            Glide glide = Glide.get(context);
            requestManager = factory.build(glide, current.getGlideLifecycle(), current.getRequestManagerTreeNode(), context);
            if (isParentVisible) {
                requestManager.onStart();
            }
            current.setRequestManager(requestManager);
        }
        return requestManager;
    }

    private SupportRequestManagerFragment getSupportRequestManagerFragment(final FragmentManager fm, Fragment parentHint) {
        SupportRequestManagerFragment current = (SupportRequestManagerFragment) fm.findFragmentByTag(FRAGMENT_TAG);
        if (current == null) {
            current = pendingSupportRequestManagerFragments.get(fm);
            if (current == null) {
                current = new SupportRequestManagerFragment();
                current.setParentFragmentHint(parentHint);
                pendingSupportRequestManagerFragments.put(fm, current);
                fm.beginTransaction().add(current, FRAGMENT_TAG).commitAllowingStateLoss();
                handler.obtainMessage(ID_REMOVE_SUPPORT_FRAGMENT_MANAGER, fm).sendToTarget();
            }
        }
        return current;
    }

    private static final RequestManagerFactory DEFAULT_FACTORY =
        new RequestManagerFactory() {
            @Override
            public RequestManager build(lide glide,
                Lifecycle lifecycle, ...) {
                return new RequestManager(glide, lifecycle, ...);
            }
        };
}
  1. Context 不能为 null；
  2. 非 UI 线程或 Application 上下文绑定的是全局生命周期；
  3. UI 线程，将 SupportRequestManagerFragment 实例添加到当前 Activity 中，实现对 Activity 生命周期的监听；

绑定资源加载类型

RequestManager 用于管理和发起请求，而且能感知组件的生命周期。基于 Lifecycle。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/**
* A class for managing and starting requests for Glide.
*/
public class RequestManager{
    public RequestBuilder<Drawable> load(String string) {
        return asDrawable().load(string);
    }

    public RequestBuilder<Drawable> asDrawable() {
        return as(Drawable.class);
    }

    public RequestBuilder<File> asFile() {
        return as(File.class).apply(skipMemoryCacheOf(true));
    }

    public RequestBuilder<Bitmap> asBitmap() {
        return as(Bitmap.class).apply(DECODE_TYPE_BITMAP);
    }

    public <ResourceType> RequestBuilder<ResourceType> as(Class<ResourceType> resourceClass) {
        return new RequestBuilder<>(glide, this, resourceClass, context);
    }
}
  1. 绑定资源类型，如 URL，Drawable, File, Bitmap 等。

实例化 ImageViewTarget，绑定 ImageView

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
public class RequestBuilder<TranscodeType>{
    public RequestBuilder<TranscodeType> load(String string) {
        return loadGeneric(string);
    }

    private RequestBuilder<TranscodeType> loadGeneric(Object model) {
        if (isAutoCloneEnabled()) {
            return clone().loadGeneric(model);
        }
        this.model = model;
        isModelSet = true;
        return selfOrThrowIfLocked();
    }

    public ViewTarget<ImageView, TranscodeType> into(ImageView view) {
        Util.assertMainThread();
        BaseRequestOptions<?> requestOptions = this;
        if (!requestOptions.isTransformationSet()
                && requestOptions.isTransformationAllowed()
                && view.getScaleType() != null) {
            switch (view.getScaleType()) {
                case CENTER_CROP:
                    requestOptions = requestOptions.clone().optionalCenterCrop();
                    break;
                case CENTER_INSIDE:
                    requestOptions = requestOptions.clone().optionalCenterInside();
                    break;
                case FIT_CENTER:
                case FIT_START:
                case FIT_END:
                    requestOptions = requestOptions.clone().optionalFitCenter();
                    break;
                case FIT_XY:
                    requestOptions = requestOptions.clone().optionalCenterInside();
                    break;
                case CENTER:
                case MATRIX:
                default:
                    // Do nothing.
            }
        }

        return into(glideContext.buildImageViewTarget(view, transcodeClass),
                    null, requestOptions, Executors.mainThreadExecutor());
    }

    private <Y extends Target<TranscodeType>> Y into(Y target, RequestListener<TranscodeType> targetListener,
        BaseRequestOptions<?> options, Executor callbackExecutor) {

        // 构造 SingleRequest 对象
        Request request = buildRequest(target, targetListener, options, callbackExecutor);
        Request previous = target.getRequest();
        // 检查是否可以复用前一个 Request；
        if (request.isEquivalentTo(previous)
                && !isSkipMemoryCacheWithCompletePreviousRequest(options, previous)) {
            if (!Preconditions.checkNotNull(previous).isRunning()) {
                previous.begin();
            }
            return target;
        }

        requestManager.clear(target);
        // 通过 setTag() 绑定 ImageView 的 Request
        target.setRequest(request);
        // 添加到请求队列
        requestManager.track(target, request);

        return target;
    }
}

public class ImageViewTargetFactory {
    public <Z> ViewTarget<ImageView, Z> buildTarget(mageView view, Class<Z> clazz) {
        if (Bitmap.class.equals(clazz)) {
            return (ViewTarget<ImageView, Z>) new BitmapImageViewTarget(view);
        } else if (Drawable.class.isAssignableFrom(clazz)) {
            return (ViewTarget<ImageView, Z>) new DrawableImageViewTarget(view);
        } else {
            throw new IllegalArgumentException(
                "Unhandled class: " + clazz + ", try .as*(Class).transcode(ResourceTranscoder)");
        }
    }
}
  1. into(imageView) 必须在主线程调用；
  2. 设置裁剪模式；
  3. 通过 GlideContext 创建 ViewTarget。只支持 BitmapImageViewTarget 和 BitmapImageViewTarget；
    1. 构造 SingleRequest，并通过 ImageView#setTag() 绑定；
  4. 通过 RequestManager#track(target, request) 加载图片；

加载图片

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
public class RequestManager {
    synchronized void track(Target<?> target, Request request) {
        // 添加到 ImageViewTarget 集合
        targetTracker.track(target);
        // 发起图片请求
        requestTracker.runRequest(request);
    }
}

/**
 * A class for tracking, canceling, and restarting in progress, completed, and failed requests.
 */
public class RequestTracker {

    public void runRequest(Request request) {
        // 添加请求到请求集合
        requests.add(request);
        // 如果请求没有暂停就发起请求
        if (!isPaused) {
            request.begin();
        } else {
            // 清除请求，并且添加到待调度集合
            request.clear();
            pendingRequests.add(request);
        }
    }
}

/**
 * A Request that loads a Resource into a given Target.
 */
public final class SingleRequest<R>{
    public void begin() {
        synchronized (requestLock) {
            if (model == null) {
                onLoadFailed(new GlideException("Received null model"), logLevel);
                return;
            }

            if (status == Status.RUNNING) {
                throw new IllegalArgumentException("Cannot restart a running request");
            }

            if (status == Status.COMPLETE) {
                onResourceReady(resource, DataSource.MEMORY_CACHE, false);
                return;
            }

            status = Status.WAITING_FOR_SIZE;
            if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
                onSizeReady(overrideWidth, overrideHeight);
            } else {
                // 获取 View 的测量宽高，并回调 onSizeReady() 方法
                target.getSize(this);
            }

            if ((status == Status.RUNNING || status == Status.WAITING_FOR_SIZE)
                && canNotifyStatusChanged()) {
                // 回调 BitmapImageViewTarget#setResource() -> ImageView.setImageDrawable()
                target.onLoadStarted(getPlaceholderDrawable());
            }
        }
    }

    public void onSizeReady(int width, int height) {
        if (status != Status.WAITING_FOR_SIZE) {
            return;
        }
        status = Status.RUNNING;

        float sizeMultiplier = requestOptions.getSizeMultiplier();
        this.width = maybeApplySizeMultiplier(width, sizeMultiplier);
        this.height = maybeApplySizeMultiplier(height, sizeMultiplier);

        loadStatus = engine.load(glideContext, model,... callbackExecutor);
    }
}
  1. 根据请求状态执行不同操作；
  2. 宽高确定后回调 onSizeReady() ，通过 Engine 请求图片。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
/** Responsible for starting loads and managing active and cached resources. */
public class Engine{

    public <R> LoadStatus load(...){
        EngineKey key = keyFactory.buildKey();
        EngineResource<?> memoryResource = loadFromMemory(key, isMemoryCacheable, startTime);
        if (memoryResource == null) {
            return waitForExistingOrStartNewJob(...);
        }
        cb.onResourceReady(memoryResource, DataSource.MEMORY_CACHE, false);
        return null;
    }

    private EngineResource<?> loadFromMemory(
        EngineKey key, boolean isMemoryCacheable, long startTime) {
        if (!isMemoryCacheable) {
            return null;
        }

        EngineResource<?> active = loadFromActiveResources(key);
        if (active != null) {
            return active;
        }

        EngineResource<?> cached = loadFromCache(key);
        if (cached != null) {
            return cached;
        }

        return null;
    }
}

  1. 构造请求的唯一标识；
  2. 内存缓存存在，调用 onResourceReady() 回调；
  3. 否则网络加载资源；

缓存类型：

  • 活动资源 (Active Resources)：正在显示的资源
  • 内存缓存 (Memory cache)：显示过的资源
  • 资源类型（Resource）：被解码、转换后的资源
  • 数据来源 (Data)：源文件（未处理过）资源
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// Engine.java
private <R> LoadStatus waitForExistingOrStartNewJob(...){
    EngineJob<?> current = jobs.get(key, onlyRetrieveFromCache);
    if (current != null) {
        current.addCallback(cb, callbackExecutor);
        return new LoadStatus(cb, current);
    }
    EngineJob<R> engineJob = engineJobFactory.build(key, ...);
    DecodeJob<R> decodeJob = decodeJobFactory.build(engineJob, ...);
    jobs.put(key, engineJob);

    engineJob.addCallback(cb, callbackExecutor);
    engineJob.start(decodeJob);
    return new LoadStatus(cb, engineJob);
}
  1. 如果请求已存在，设置回调返回；
  2. 否则，构造 EngineJob 和 DecodeJob，加入到 EngineJob 集合中；
  3. 新加入的 EngineJob 设置回调，启动 EngineJob。
1
2
3
4
5
6
7
8
9
10
11
12
13
// EngineJob.java
public synchronized void start(DecodeJob<R> decodeJob) {
    this.decodeJob = decodeJob;
    GlideExecutor executor =
        decodeJob.willDecodeFromCache() ? diskCacheExecutor : getActiveSourceExecutor();
    executor.execute(decodeJob);
}

private GlideExecutor getActiveSourceExecutor() {
    return useUnlimitedSourceGeneratorPool
        ? sourceUnlimitedExecutor
        : (useAnimationPool ? animationExecutor : sourceExecutor);
}
  1. 根据缓存策略决定使用哪个线程池。默认情况返回 diskCacheExecutor。 共三种线程池：diskCacheExecutor, sourceUnlimitedExecutor, animationExecutor 或 sourceExecutor 执行请求。

Glide 默认通过 GlideExecutor.newSourceExecutor() 为 sourceExecutor 初始化。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/** A prioritized ThreadPoolExecutors for running jobs in Glide. */
public final class GlideExecutor implements ExecutorService {
    public static GlideExecutor newSourceExecutor() {
        return newSourceBuilder().build();
    }

    public static GlideExecutor.Builder newSourceBuilder() {
        return new GlideExecutor.Builder(false)
            .setThreadCount(calculateBestThreadCount())
            .setName(DEFAULT_SOURCE_EXECUTOR_NAME);
    }

    public GlideExecutor build() {
        ThreadPoolExecutor executor =
            new ThreadPoolExecutor(
                corePoolSize,
                maximumPoolSize,
                /*keepAliveTime=*/ threadTimeoutMillis,
                TimeUnit.MILLISECONDS,
                new PriorityBlockingQueue<Runnable>(),
                new DefaultThreadFactory(name, uncaughtThrowableStrategy, preventNetworkOperations));

        if (threadTimeoutMillis != NO_THREAD_TIMEOUT) {
            executor.allowCoreThreadTimeOut(true);
        }

        return new GlideExecutor(executor);
    }
}
  1. 设置 GlideExecutor 线程池；
  2. 线程池调度执行 DecodeJob；
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
/**
 * A class responsible for decoding resources either from cached data or from the original source
 * and applying transformations and transcodes.
 */
class DecodeJob<R> implements Runnable,... {
    @Override
    public void run() {
        if (isCancelled) {
            notifyFailed();
            return;
        }
        runWrapped();
    }

    private void runWrapped() {
        switch (runReason) {
            case INITIALIZE:
                stage = getNextStage(Stage.INITIALIZE);
                currentGenerator = getNextGenerator();
                runGenerators();
            break;
            case SWITCH_TO_SOURCE_SERVICE:
                runGenerators();
            break;
            case DECODE_DATA:
                decodeFromRetrievedData();
            break;
            default:
                throw new IllegalStateException("Unrecognized run reason: " + runReason);
        }
    }

    private Stage getNextStage(Stage current) {
        switch (current) {
        case INITIALIZE:
            return diskCacheStrategy.decodeCachedResource()
                ? Stage.RESOURCE_CACHE
                : getNextStage(Stage.RESOURCE_CACHE);
        case RESOURCE_CACHE:
            return diskCacheStrategy.decodeCachedData()
                ? Stage.DATA_CACHE
                : getNextStage(Stage.DATA_CACHE);
        case DATA_CACHE:
            // Skip loading from source if the user opted to only retrieve the resource from cache.
            return onlyRetrieveFromCache ? Stage.FINISHED : Stage.SOURCE;
        case SOURCE:
        case FINISHED:
            return Stage.FINISHED;
        default:
            throw new IllegalArgumentException("Unrecognized stage: " + current);
        }
    }

    private void runGenerators() {
        currentThread = Thread.currentThread();
        boolean isStarted = false;
        while (!isCancelled
                && currentGenerator != null
                && !(isStarted = currentGenerator.startNext())) {
            stage = getNextStage(stage);
            currentGenerator = getNextGenerator();

            // 如果任务是加载资源阶段，则切换任务执行环境
            if (stage == Stage.SOURCE) {
                reschedule();
                return;
            }
        }
        if ((stage == Stage.FINISHED || isCancelled) && !isStarted) {
            notifyFailed();
        }
    }

    /** Where we're trying to decode data from. */
    private enum Stage {
        /** The initial stage. */
        INITIALIZE,
        /** Decode from a cached resource. */
        RESOURCE_CACHE,
        /** Decode from cached source data. */
        DATA_CACHE,
        /** Decode from retrieved source. */
        SOURCE,
        /** Encoding transformed resources after a successful load. */
        ENCODE,
        /** No more viable stages. */
        FINISHED,
    }
}
  1. 判断当前任务在 INITIALIZE, RESOURCE_CACHE, DATA_CACHE, SOURCE 或 FINISHED 的哪个阶段；
  2. 根据不同的 Stage 执行不同的任务。
    • ResourceCacheGenerator 从转换后的缓存中读取资源；
    • DataCacheGenerator 从原始的缓存中读取资源；
    • SourceGenerator 从源文件加载资源。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
/**
 * Generates DataFetchers from original source data
 * using registered ModelLoaders and the model provided for the load.
 */
class SourceGenerator {
    public boolean startNext() {
        if (dataToCache != null) {
            Object data = dataToCache;
            dataToCache = null;
            cacheData(data);
        }

        if (sourceCacheGenerator != null && sourceCacheGenerator.startNext()) {
            return true;
        }
        sourceCacheGenerator = null;

        loadData = null;
        boolean started = false;
        while (!started && hasNextModelLoader()) {
            loadData = helper.getLoadData().get(loadDataListIndex++);
            if (loadData != null
                && (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
                    || helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
                started = true;
                startNextLoad(loadData);
            }
        }
        return started;
    }

    private void startNextLoad(final LoadData<?> toStart) {
        loadData.fetcher.loadData(helper.getPriority(),
            new DataCallback<Object>() {
                @Override
                public void onDataReady(Object data) {
                    if (isCurrentRequest(toStart)) {
                        onDataReadyInternal(toStart, data);
                    }
                }

                @Override
                public void onLoadFailed(Exception e) {
                    if (isCurrentRequest(toStart)) {
                        onLoadFailedInternal(toStart, e);
                    }
                }
            });
    }
}
  1. 通过 HttpUrlFetcher 等 Fetcher 加载图片。

MultiModelLoader.MultiFetcher -> OkHttpStreamFetcher(需要引入 okhttp3-integration)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

/** A DataFetcher that retrieves an InputStream for a Url. */
public class HttpUrlFetcher{

    public void loadData( Priority priority, DataCallback<? super InputStream> callback) {
        InputStream result = loadDataWithRedirects(glideUrl.toURL(), 0, null, glideUrl.getHeaders());
        callback.onDataReady(result);
    }

    private InputStream loadDataWithRedirects(URL url, ...){
        // ... 最多重定向 5 次
        urlConnection = buildAndConfigureConnection(url, headers);
        urlConnection.connect();
        stream = urlConnection.getInputStream();

        if (isCancelled) {
            return null;
        }

        final int statusCode = getHttpStatusCodeOrInvalid(urlConnection);
        if (isHttpOk(statusCode)) {
            return getStreamForSuccessfulRequest(urlConnection);
        } else if (isHttpRedirect(statusCode)) {
            URl redirectUrl = new URL(url, redirectUrlString);
            cleanup();
            return loadDataWithRedirects(redirectUrl, redirects + 1, url, headers);
        } else {
            // 抛出 HttpException 异常
        }
    }
}

  1. 通过 HttpURLConnection 获取图片 Stream；
  2. 回调 DataCallback#onDataFetcherReady() -> SourceGenerator#onDataReadyInternal() -> DecodeJob#onDataFetcherReady()。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// DecodeJob.java
public void onDataFetcherReady(...) {
    if (Thread.currentThread() != currentThread) {
        runReason = RunReason.DECODE_DATA;
        callback.reschedule(this);
    } else {
        decodeFromRetrievedData();
    }
}

private void decodeFromRetrievedData() {
    Resource<R> resource = decodeFromData(currentFetcher, currentData, currentDataSource);
    if (resource != null) {
        notifyEncodeAndRelease(resource, currentDataSource, isLoadingFromAlternateCacheKey);
    } else {
        runGenerators();
    }
}

private void notifyEncodeAndRelease(){
    notifyComplete(result, ...);
    stage = Stage.ENCODE;
}

private void notifyComplete(Resource<R> resource, ...) {
    callback.onResourceReady(resource, dataSource, isLoadedFromAlternateCacheKey);
}

回调 ImageViewTarget，显示图片

1
2
3
4
5
6
7
8
// SingleRequest.java
private void onResourceReady(Resource<R> resource...){
    status = Status.COMPLETE;
    if (!anyListenerHandledUpdatingTarget) {
        Transition<? super R> animation = animationFactory.build(dataSource, isFirstResource);
        target.onResourceReady(result, animation);
    }
}

SingleRequest#onResourceReady() 方法最终会调用到 BitmapImageViewTarget.setResource() 方法。

1
2
3
4
5
6
7
8
9
/**
 * A Target that can display an Bitmap in an ImageView.
 */
public class BitmapImageViewTarget extends ImageViewTarget<Drawable> {
    @Override
    protected void setResource(Drawable resource) {
       view.setImageBitmap(resource);
    }
}

GlideAnnotationProcessor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// https://github.com/bumptech/glide/blob/master/annotation/compiler/src/main/java/com/bumptech/glide/annotation/compiler/GlideAnnotationProcessor.java
public final class GlideAnnotationProcessor extends AbstractProcessor {
    @Override
    public synchronized void init(ProcessingEnvironment processingEnvironment) {
        super.init(processingEnvironment);
        processorUtil = new ProcessorUtil(processingEnvironment);
        IndexerGenerator indexerGenerator = new IndexerGenerator(processorUtil);
        libraryModuleProcessor = new LibraryModuleProcessor(processorUtil, indexerGenerator);
        appModuleProcessor = new AppModuleProcessor(processingEnvironment, processorUtil);
        extensionProcessor = new ExtensionProcessor(processingEnvironment, processorUtil, indexerGenerator);
    }

    @Override
    public Set<String> getSupportedAnnotationTypes() {
        Set<String> result = new HashSet<>();
        // GlideModule 注解
        result.addAll(libraryModuleProcessor.getSupportedAnnotationTypes());
        // GlideExtension 注解
        result.addAll(extensionProcessor.getSupportedAnnotationTypes());
        return result;
    }
}

总结

  1. 通过向 Activity 添加无界面的 RequestManagerFragment 绑定生命周期；
  2. 将 ImageView 包装成 ImageViewTarget；
  3. 执行新的请求前，会清除这个 ImageViewTarget 之前绑定的请求，绑定新的请求；
  4. 默认使用 HttpUrlConnection 作为网络请求模块；
  5. 获取图片资源成功则会调用 ImageViewTarget#onResourceReady() 方法，否则调用 onLoadFailed() 方法。都会调用 ImageView.setImageBitmap(resource) 设置图片；

流程图

Glide 加载流程

参考

[1] Glide - github
[2] Glide Docs-Cn
[3] glide-transformations
[4] 深入理解 Glide
[5] Glide 分析文章
