Retrofit 源码分析

发表于 更新于 分类于

Retrofit 是 Square 公司开发的网络请求框架，它是类型安全的，可用于 Android 和 Java 开发。通过注解的方式传递参数和 Java 动态代理，很大程度长简化了模版代码。

源码基于 com.squareup.retrofit2:retrofit:2.9.0。

简介

  • Builder 模式构建；
  • 动态代理；
  • 自定义注解；
  • 默认只能将响应体转换为 OkHttp 中的 ResponseBody。

Retrofit 只负责生产能做网络请求的工作对象，他有点像一个工厂，只提供产品，工厂本身不处理网络请求，产品才能处理网络请求。

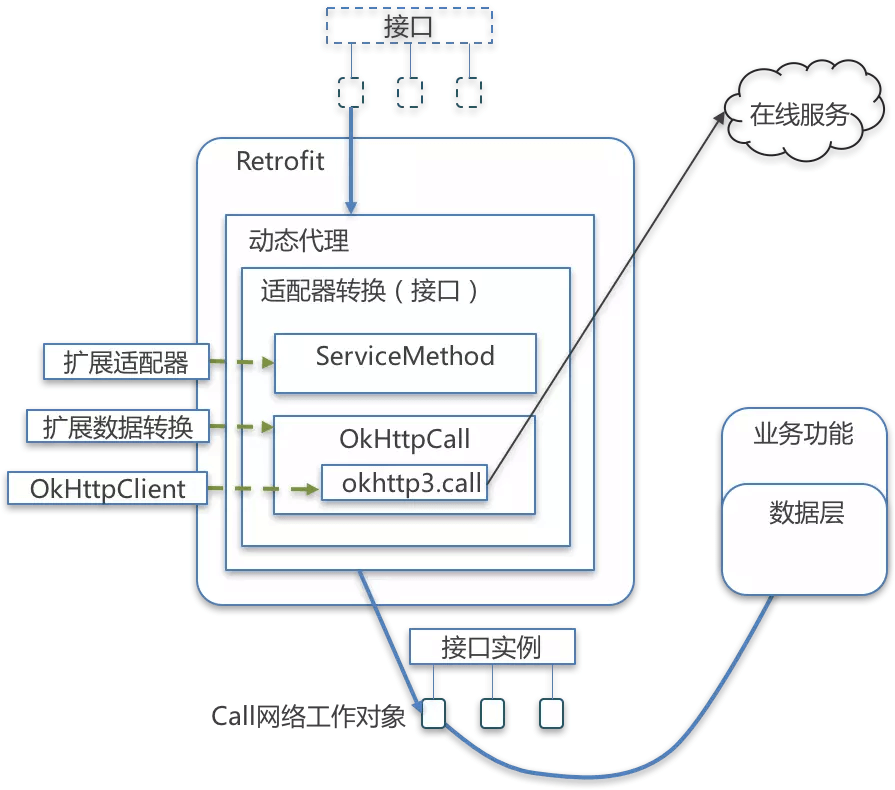

Retrofit

基本使用

1
2
3
4
public interface GitHubService {
    @GET("/users/{user}")
    Call<GitHubUser> getUser(@Path("user") String user);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Retrofit retrofit = new Retrofit.Builder()
        .baseUrl("https://api.github.com/")
        .addConverterFactory(GsonConverterFactory.create())
        .build();

GitHubService service = retrofit.create(GitHubService.class);
Call<GitHubUser> userCall = service.getUser("square");
userCall.enqueue(new Callback<GitHubUser>() {
    @Override
    public void onResponse(Call<GitHubUser> call, Response<GitHubUser> response) {
        GitHubUser user = response.body();
    }

    @Override
    public void onFailure(Call<GitHubUser> call, Throwable t) {
    }
});

源码分析

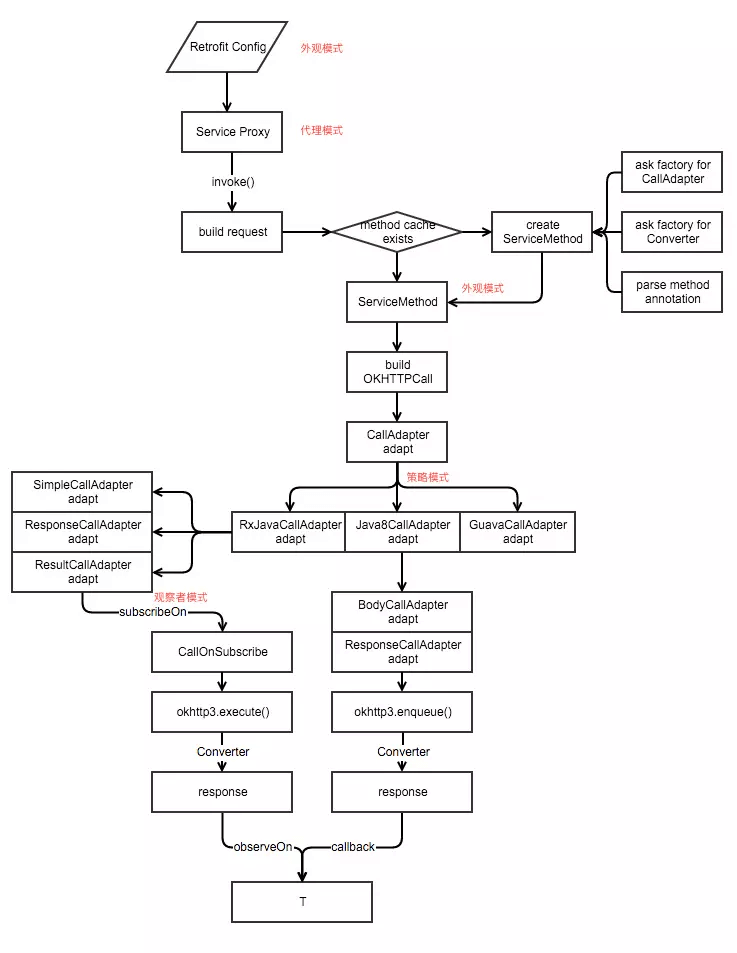

Retrofit 整体流程如下：
Retrofit 流程

1. 构造 Retrofit 对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
// Retrofit.java
public static final class Builder {
    Builder(Platform platform) {
        this.platform = platform;
    }

    public Builder() {
        this(Platform.get());
    }

    public Retrofit build() {
        if (baseUrl == null) {
            throw new IllegalStateException("Base URL required.");
        }

        okhttp3.Call.Factory callFactory = this.callFactory;
        if (callFactory == null) {
            callFactory = new OkHttpClient();
        }

        Executor callbackExecutor = this.callbackExecutor;
        if (callbackExecutor == null) {
            callbackExecutor = platform.defaultCallbackExecutor();
        }

        // Make a defensive copy of the adapters and add the default Call adapter.
        List<CallAdapter.Factory> callAdapterFactories = new ArrayList<>(this.callAdapterFactories);
        callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));

        // Make a defensive copy of the converters.
        List<Converter.Factory> converterFactories =
            new ArrayList<>(1 + this.converterFactories.size() + platform.defaultConverterFactoriesSize());

        // Add the built-in converter factory first. This prevents overriding its behavior but also
        // ensures correct behavior when using converters that consume all types.
        converterFactories.add(new BuiltInConverters());
        converterFactories.addAll(this.converterFactories);
        converterFactories.addAll(platform.defaultConverterFactories());

        return new Retrofit(
            callFactory,
            baseUrl,
            unmodifiableList(converterFactories),
            unmodifiableList(callAdapterFactories),
            callbackExecutor,
            validateEagerly);
    }
}

  1. url 不能为空；

  2. callFactory 默认为 OkHttpClient；

  3. 支持 Java 和 Android 平台。

    1
    2
    3
    4
    5
    6
    // Platform.java
    private static Platform findPlatform() {
        return "Dalvik".equals(System.getProperty("java.vm.name"))
            ? new Android()
            : new Platform(true);
    }

2. 创建服务接口对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
// Retrofit.java
public <T> T create(final Class<T> service) {
    validateServiceInterface(service);
    return (T)
        Proxy.newProxyInstance(
            service.getClassLoader(),
            new Class<?>[] {service},
            new InvocationHandler() {
              private final Platform platform = Platform.get();
              private final Object[] emptyArgs = new Object[0];

              @Override
              public Object invoke(Object proxy, Method method, Object[] args)
                  throws Throwable {
                // If the method is a method from Object then defer to normal invocation.
                if (method.getDeclaringClass() == Object.class) {
                  return method.invoke(this, args);
                }
                args = args != null ? args : emptyArgs;
                return platform.isDefaultMethod(method)
                    ? platform.invokeDefaultMethod(method, service, proxy, args)
                    : loadServiceMethod(method).invoke(args);
              }
            });
}

private void validateServiceInterface(Class<?> service) {
    if (!service.isInterface()) {
      throw new IllegalArgumentException("API declarations must be interfaces.");
    }

    Deque<Class<?>> check = new ArrayDeque<>(1);
    check.add(service);
    while (!check.isEmpty()) {
      Class<?> candidate = check.removeFirst();
      if (candidate.getTypeParameters().length != 0) {
        // ...
        throw new IllegalArgumentException(message.toString());
      }
      // 检查父接口
      Collections.addAll(check, candidate.getInterfaces());
    }

    //是否提前加载服务方法
    if (validateEagerly) {
      Platform platform = Platform.get();
      for (Method method : service.getDeclaredMethods()) {
        if (!platform.isDefaultMethod(method) && !Modifier.isStatic(method.getModifiers())) {
          loadServiceMethod(method);
        }
      }
    }
}
  1. 服务类必须是接口，且不支持泛型；
  2. 判断是否预加载服务方法；
  3. 通过动态代理实例化服务接口对象。

3. 加载服务方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
// Retrofit.java
ServiceMethod<?> loadServiceMethod(Method method) {
    ServiceMethod<?> result = serviceMethodCache.get(method);
    if (result != null) return result;

    synchronized (serviceMethodCache) {
        result = serviceMethodCache.get(method);
        if (result == null) {
            result = ServiceMethod.parseAnnotations(this, method);
            serviceMethodCache.put(method, result);
        }
    }
    return result;
}
  1. 服务方法存在，直接返回；
  2. 服务方法不存在，解析服务方法，并添加到缓存。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
// ServiceMethod.java
static <T> ServiceMethod<T> parseAnnotations(Retrofit retrofit, Method method) {
    RequestFactory requestFactory = RequestFactory.parseAnnotations(retrofit, method);

    Type returnType = method.getGenericReturnType();
    if (Utils.hasUnresolvableType(returnType)) {
        throw methodError( method, "Method return type must not include a type variable or wildcard: %s", returnType);
    }
    if (returnType == void.class) {
        throw methodError(method, "Service methods cannot return void.");
    }

    return HttpServiceMethod.parseAnnotations(retrofit, method, requestFactory);
}
  1. 根据注解解析出请求方法，请求地址和请求头等数据，并包装成 RequestFactory；
  2. 服务方法返回类型不能是 void，类型变量和通配符类型；
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
// RequestFactory.java
static RequestFactory parseAnnotations(Retrofit retrofit, Method method) {
    return new Builder(retrofit, method).build();
}

RequestFactory build() {
    // 解析注解
    for (Annotation annotation : methodAnnotations) {
        parseMethodAnnotation(annotation);
    }

    // 参数检查
    int parameterCount = parameterAnnotationsArray.length;
    parameterHandlers = new ParameterHandler<?>[parameterCount];
    for (int p = 0, lastParameter = parameterCount - 1; p < parameterCount; p++) {
        parameterHandlers[p] =
            parseParameter(p, parameterTypes[p], parameterAnnotationsArray[p], p == lastParameter);
    }

    // ... 必要的数据合法性检查

    return new RequestFactory(this);
}

private void parseMethodAnnotation(Annotation annotation) {
    if (annotation instanceof GET) {
        parseHttpMethodAndPath("GET", ((GET) annotation).value(), false);
    } else if (annotation instanceof POST) {
        parseHttpMethodAndPath("POST", ((POST) annotation).value(), true);
    } else if (annotation instanceof HTTP) {
        HTTP http = (HTTP) annotation;
        parseHttpMethodAndPath(http.method(), http.path(), http.hasBody());
    } else if (annotation instanceof retrofit2.http.Headers) {
        headers = parseHeaders(headersToParse);
    } else if (annotation instanceof Multipart) {
        isMultipart = true;
    } else if (annotation instanceof FormUrlEncoded) {
        isFormEncoded = true;
    }
}

private void parseHttpMethodAndPath(String httpMethod, String value, boolean hasBody) {
    this.httpMethod = httpMethod;
    this.hasBody = hasBody;

    if (value.isEmpty()) {
        return;
    }

    // Get the relative URL path and existing query string, if present.
    int question = value.indexOf('?');
    if (question != -1 && question < value.length() - 1) {
        // Ensure the query string does not have any named parameters.
        String queryParams = value.substring(question + 1);
        Matcher queryParamMatcher = PARAM_URL_REGEX.matcher(queryParams);
        if (queryParamMatcher.find()) {
            throw methodError(
                method, "URL query string \"%s\" must not have replace block. "
                    + "For dynamic query parameters use @Query.", queryParams);
        }
    }

    this.relativeUrl = value;
    this.relativeUrlParamNames = parsePathParameters(value);
}
  1. 构造器模式创建 requestFactory；
  2. 解析方法上的注解，获取 URL、请求方法、请求头等信息；
  3. 参数合法性检查；
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
// HttpServiceMethod.java
static <ResponseT, ReturnT> HttpServiceMethod<ResponseT, ReturnT> parseAnnotations(
      Retrofit retrofit, Method method, RequestFactory requestFactory) {
    // ...
    Annotation[] annotations = method.getAnnotations();
    Type adapterType;
    if (isKotlinSuspendFunction) {
        // Kotlin 协程方法
    } else {
        // Call<GitHubUser>，Observable<GitHubUser>
        adapterType = method.getGenericReturnType();
    }
    // 查找能处理此请求的 CallAdapter
    CallAdapter<ResponseT, ReturnT> callAdapter = createCallAdapter(retrofit, method, adapterType, annotations);
    // Call<GitHubUser> 中的 GitHubUser
    Type responseType = callAdapter.responseType();
    // 查找能处理此请求的响应转换器
    Converter<ResponseBody, ResponseT> responseConverter =
        createResponseConverter(retrofit, method, responseType);

    okhttp3.Call.Factory callFactory = retrofit.callFactory;
    if (!isKotlinSuspendFunction) {
        return new CallAdapted<>(requestFactory, callFactory, responseConverter, callAdapter);
    } else if (continuationWantsResponse) {
        // ...
    } else {
        // ...
    }
}
  1. 查找能处理此返回类型的 CallAdapter，默认是 DefaultCallAdapterFactory；
  2. 查找能处理此返回类型的 ConverterFactory。默认是 BuiltInConverters，只能处理 okhttp3.ResponseBody 和 Void 类型；
  3. 返回 HttpServiceMethod 的实现类 CallAdapted 对象。

4. 通过服务方法发起网络请求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
abstract class HttpServiceMethod<ResponseT, ReturnT> extends ServiceMethod<ReturnT> {

    @Override
    final ReturnT invoke(Object[] args) {
        Call<ResponseT> call = new OkHttpCall<>(requestFactory, args, callFactory, responseConverter);
        return adapt(call, args);
    }

    protected abstract ReturnT adapt(Call<ResponseT> call, Object[] args);

    static final class CallAdapted<ResponseT, ReturnT> extends HttpServiceMethod<ResponseT, ReturnT> {
        private final CallAdapter<ResponseT, ReturnT> callAdapter;

        @Override
        protected ReturnT adapt(Call<ResponseT> call, Object[] args) {
            // DefaultCallAdapterFactory$CallAdapter
            return callAdapter.adapt(call);
        }
    }
}

final class DefaultCallAdapterFactory extends CallAdapter.Factory {

    @Override
    public CallAdapter<?, ?> get(
        Type returnType, Annotation[] annotations, Retrofit retrofit) {
        if (getRawType(returnType) != Call.class) {
            return null;
        }
        if (!(returnType instanceof ParameterizedType)) {
            throw new IllegalArgumentException("Call return type must be parameterized as Call<Foo> or Call<? extends Foo>");
        }
        final Type responseType = Utils.getParameterUpperBound(0, (ParameterizedType) returnType);

        final Executor executor =
            Utils.isAnnotationPresent(annotations, SkipCallbackExecutor.class) ? null : callbackExecutor;

        return new CallAdapter<Object, Call<?>>() {
            @Override
            public Type responseType() {
                return responseType;
            }

            @Override
            public Call<Object> adapt(Call<Object> call) {
                return executor == null ? call : new ExecutorCallbackCall<>(executor, call);
            }
        };
    }

    static final class ExecutorCallbackCall<T> implements Call<T> {

        @Override
        public void enqueue(final Callback<T> callback) {
            // delegate 是 retrofit2.OkHttpCall
            delegate.enqueue(
                new Callback<T>() {
                    @Override
                    public void onResponse(Call<T> call, final Response<T> response) {
                    callbackExecutor.execute(
                        () -> {
                            if (delegate.isCanceled()) {
                                // Emulate OkHttp's behavior of throwing/delivering an IOException on
                                // cancellation.
                                callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
                            } else {
                                callback.onResponse(ExecutorCallbackCall.this, response);
                            }
                        });
                    }

                    @Override
                    public void onFailure(Call<T> call, final Throwable t) {
                        callbackExecutor.execute(() -> callback.onFailure(ExecutorCallbackCall.this, t));
                    }
                });
        }

        @Override
        public Response<T> execute() throws IOException {
            return delegate.execute();
        }
    }
}
  1. 适配成 retrofit2.Call<GithubUser>、Single<GitHubUser>等；
  2. 通过 retrofit2.OkHttpCall 发起 http 请求；
  3. 响应消息回调。

注解

Query & QueryMap

用户设置 URL 中的参数。

1
2
3
@GET("/")
Call<ResponseBody> list(@Query("page") int page);
Call<ResponseBody> list(@QueryMap Map<String, String> params);

Field & FieldMap

用来设置 POST 请求的表单。

1
2
3
@FormUrlEncoded @POST("/")
Call<ResponseBody> submit(@Field("name"));
Call<ResponseBody> submit(@FieldMap Map<String, String> params);

Part & PartMap

用来上传文件。

1
2
@Multipart @POST("upload")
Call<ResponseBody> upload(@Part("description") RequestBody description, @Part MultipartBody.Part file);

请求适配器 CallAdapter<R, T>

负责把 Retrofit 中执行网络请求的 Call 对象，转换为接口中定义的 Call 对象（eg：okhttp3.Call< User >，Observable< User >，Flowable< User >）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public interface CallAdapter<R, T> {

    Type responseType();
    T adapt(Call<R> call);

    abstract class Factory {
        public abstract CallAdapter<?, ?> get( Type returnType, Annotation[] annotations, Retrofit retrofit);

        protected static Type getParameterUpperBound(int index, ParameterizedType type) {
            return Utils.getParameterUpperBound(index, type);
        }

        protected static Class<?> getRawType(Type type) {
            return Utils.getRawType(type);
        }
    }
}

Retrofit 默认实现了两个 CallAdapter：

  1. DefaultCallAdapterFactory；
  2. CompletableFutureCallAdapterFactory；

RxJava2CallAdapterFactory：

“com.squareup.retrofit2:adapter-rxjava2:2.9.0”

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
public final class RxJava2CallAdapterFactory extends CallAdapter.Factory {

    @Override
    public @Nullable CallAdapter<?, ?> get(Type returnType, Annotation[] annotations, Retrofit retrofit) {
        Class<?> rawType = getRawType(returnType);

        if (rawType == Completable.class) {
            return new RxJava2CallAdapter(Void.class, scheduler, isAsync, false, true, false, false, false, true);
        }

        boolean isFlowable = rawType == Flowable.class;
        boolean isSingle = rawType == Single.class;
        boolean isMaybe = rawType == Maybe.class;
        if (rawType != Observable.class && !isFlowable && !isSingle && !isMaybe) {
            return null;
        }

        boolean isResult = false;
        boolean isBody = false;
        Type responseType;
        if (!(returnType instanceof ParameterizedType)) {
            throw new IllegalStateException(
                name + " return type must be parameterized"
                    + " as " + name + "<Foo> or " + name + "<? extends Foo>");
        }

        Type observableType = getParameterUpperBound(0, (ParameterizedType) returnType);
        Class<?> rawObservableType = getRawType(observableType);
        if (rawObservableType == Response.class) {
            if (!(observableType instanceof ParameterizedType)) {
                throw new IllegalStateException("Response must be parameterized" + " as Response<Foo> or Response<? extends Foo>");
            }
            responseType = getParameterUpperBound(0, (ParameterizedType) observableType);
        } else if (rawObservableType == Result.class) {
            if (!(observableType instanceof ParameterizedType)) {
                throw new IllegalStateException( "Result must be parameterized" + " as Result<Foo> or Result<? extends Foo>");
            }
            responseType = getParameterUpperBound(0, (ParameterizedType) observableType);
            isResult = true;
        } else {
            responseType = observableType;
            isBody = true;
        }

        return new RxJava2CallAdapter(responseType, scheduler, isAsync, isResult, isBody, isFlowable, isSingle, isMaybe, false);
    }
}

final class RxJava2CallAdapter<R> implements CallAdapter<R, Object> {

    @Override
    public Type responseType() {
        return responseType;
    }
}

转换器 Converter<F, T>

  1. 扩展传递参数，如传递 File 类型；
  2. 转换响应数据，如 JSON、XML、二进制等格式（由 ResponseBody 封装）转化为 T 类型的对象。

Retrofit 在选择合适的 Converter 时，主要依赖于需要转换的对象类型。在添加 Converter 时，注意 Converter 支持的类型的包含关系以及其顺序。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public interface Converter<F, T> {
    T convert(F value) throws IOException;

    abstract class Factory {
        public Converter<ResponseBody, ?> responseBodyConverter(
            Type type, Annotation[] annotations, Retrofit retrofit) {
            return null;
        }

        public Converter<?, RequestBody> requestBodyConverter(
            Type type, Annotation[] parameterAnnotations,
                Annotation[] methodAnnotations, Retrofit retrofit) {
            return null;
        }

        public Converter<?, String> stringConverter(
            Type type, Annotation[] annotations, Retrofit retrofit) {
            return null;
        }

        protected static Type getParameterUpperBound(int index, ParameterizedType type) {
            return Utils.getParameterUpperBound(index, type);
        }

        protected static Class<?> getRawType(Type type) {
            return Utils.getRawType(type);
        }
    }
}

Converter.Factory 的默认实现类有 BuiltInConverters 和 OptionalConverterFactory。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
final class BuiltInConverters extends Converter.Factory {
    @Override
    public Converter<ResponseBody, ?> responseBodyConverter(Type type, Annotation[] annotations, Retrofit retrofit) {
        if (type == ResponseBody.class) {
            return Utils.isAnnotationPresent(annotations, Streaming.class)
                ? StreamingResponseBodyConverter.INSTANCE
                : BufferingResponseBodyConverter.INSTANCE;
        }
        if (type == Void.class) {
            return VoidResponseBodyConverter.INSTANCE;
        }
        if (checkForKotlinUnit) {
            if (type == Unit.class) {
                return UnitResponseBodyConverter.INSTANCE;
            }
        }
        return null;
    }
}

GsonConverterFactory：

“com.squareup.retrofit2:converter-gson:2.9.0”

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
public final class GsonConverterFactory extends Converter.Factory {

    public static GsonConverterFactory create() {
        return create(new Gson());
    }

    @Override
    public Converter<ResponseBody, ?> responseBodyConverter( Type type, Annotation[] annotations, Retrofit retrofit) {
        TypeAdapter<?> adapter = gson.getAdapter(TypeToken.get(type));
        return new GsonResponseBodyConverter<>(gson, adapter);
    }

    @Override
    public Converter<?, RequestBody> requestBodyConverter( Type type, Annotation[] parameterAnnotations, Annotation[] methodAnnotations, Retrofit retrofit) {
        TypeAdapter<?> adapter = gson.getAdapter(TypeToken.get(type));
        return new GsonRequestBodyConverter<>(gson, adapter);
    }
}

final class GsonRequestBodyConverter<T> implements Converter<T, RequestBody> {
    private static final MediaType MEDIA_TYPE = MediaType.get("application/json; charset=UTF-8");
    private static final Charset UTF_8 = Charset.forName("UTF-8");

    private final Gson gson;
    private final TypeAdapter<T> adapter;

    GsonRequestBodyConverter(Gson gson, TypeAdapter<T> adapter) {
        this.gson = gson;
        this.adapter = adapter;
    }

    @Override
    public RequestBody convert(T value) throws IOException {
        Buffer buffer = new Buffer();
        Writer writer = new OutputStreamWriter(buffer.outputStream(), UTF_8);
        JsonWriter jsonWriter = gson.newJsonWriter(writer);
        adapter.write(jsonWriter, value);
        jsonWriter.close();
        return RequestBody.create(MEDIA_TYPE, buffer.readByteString());
    }
}

final class GsonResponseBodyConverter<T> implements Converter<ResponseBody, T> {
    private final Gson gson;
    private final TypeAdapter<T> adapter;

    GsonResponseBodyConverter(Gson gson, TypeAdapter<T> adapter) {
        this.gson = gson;
        this.adapter = adapter;
    }

    @Override
    public T convert(ResponseBody value) throws IOException {
        JsonReader jsonReader = gson.newJsonReader(value.charStream());
        try {
            T result = adapter.read(jsonReader);
            if (jsonReader.peek() != JsonToken.END_DOCUMENT) {
                throw new JsonIOException("JSON document was not fully consumed.");
            }
            return result;
        } finally {
            value.close();
        }
    }
}

自定义上传文件转换器：

1
2
3
4
5
6
7
8
9
10
11
12
13
public class FileRequestBodyConverterFactory extends Converter.Factory {
    @Override
    public Converter<File, RequestBody> requestBodyConverter(Type type, Annotation[] parameterAnnotations, Annotation[] methodAnnotations, Retrofit retrofit) {
        return new FileRequestBodyConverter();
    }

    private static class FileRequestBodyConverter implements Converter<File, RequestBody> {
        @Override
        public RequestBody convert(File value) throws IOException {
            return RequestBody.create(MediaType.parse("application/otcet-stream"), value);
        }
    }
}

自定义响应转换器：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class MyResponseBodyConverterFactory extends Converter.Factory {
    @Override
    public Converter<ResponseBody, ?> responseBodyConverter(Type type, Annotation[] annotations, Retrofit retrofit) {
        return new MyResponseBodyConverter();
    }

    private static class MyResponseBodyConverter implements Converter<ResponseBody, Result> {
        @Override
        public Result convert(ResponseBody value) throws IOException {
            RawResult rawResult = new Gson().fromJson(value.toString(), RawResult.class);
            return new Result(rawResult.err, rawResult.content, rawResult.message);
        }
    }

    private static class Result {
        private final int code;
        private final String content;
        private final String message;

        public Result(int code, String content, String message) {
            this.code = code;
            this.content = content;
            this.message = message;
        }
    }

    private static class RawResult {
        private int err;
        private String content;
        private String message;
    }
}

ParameterHandler<T>

负责解析 API 定义时每个方法的参数，并在构造 HTTP 请求时设置参数。

OkHttpCall<T>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
final class OkHttpCall<T> implements Call<T> {

    @Override
    public void enqueue(final Callback<T> callback) {

        synchronized (this) {
            if (executed) throw new IllegalStateException("Already executed.");
            executed = true;

            call = rawCall;
            failure = creationFailure;
            if (call == null && failure == null) {
                call = rawCall = createRawCall();
            }
        }

        call.enqueue(
            new okhttp3.Callback() {
                @Override
                public void onResponse(okhttp3.Call call, okhttp3.Response rawResponse) {
                    Response<T> response = parseResponse(rawResponse);
                    callback.onResponse(OkHttpCall.this, response);
                }
            });
    }

    Response<T> parseResponse(okhttp3.Response rawResponse) throws IOException {
        ResponseBody rawBody = rawResponse.body();

        // Remove the body's source (the only stateful object) so we can pass the response along.
        rawResponse =
            rawResponse
                .newBuilder()
                .body(new NoContentResponseBody(rawBody.contentType(), rawBody.contentLength()))
                .build();

        ExceptionCatchingResponseBody catchingBody = new ExceptionCatchingResponseBody(rawBody);
        T body = responseConverter.convert(catchingBody);
        return Response.success(body, rawResponse);
    }
}

总结

  1. 使用构造器模式创建 retrofit，核心参数有 baseurl，callFactory，converterFactories，adapterFactories 和 excallbackExecutor；
  2. 通过动态地理实例化接口服务对象；
  3. 调用服务方法时，解析方法上的注解，构造 ServiceMethod 实例；
  4. 通过 CallAdapter 适配请求，获取 Call 对象，发起网络请求；
  5. 响应体 ResponseBody 通过 Converter 转换成具体类型的对象。

参考

[1] 从架构角度看 Retrofit 的作用、原理和启示
[2] 拆轮子系列：拆 Retrofit
